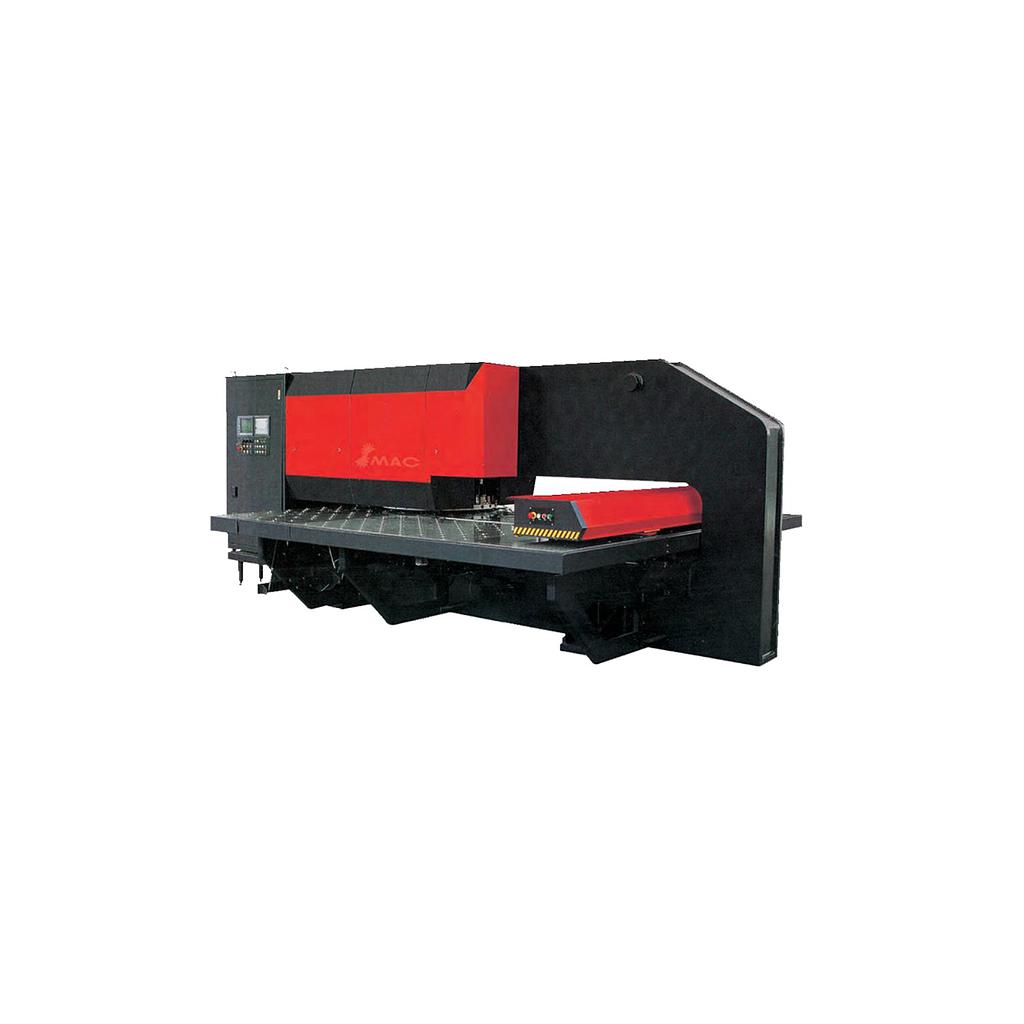

SMAC HPM-300 CNC Turret Punch Machine (Hydraulic)
Manufacturer: SMAC Model: HPM-300 Guarantee: 12 Month - Contact
Punch force (KN): 300
Max. sheet working size (mm): 1250x2500
Max. sheet working welth (kg): 150
Max. sheet thickness (mm): 6.35
Max. punch diameter (mm): ø88.9
Number of tool stations: 24, 32
Positionzing repetability (mm): ±0.1
Max. hit speed (hpm): 300
Pax.traversing speed (m/min): 56
Turet rotation (rpm): 30
Axis number: 3
Compressed air pressure (mpa): 0.6
Dimensions (mm): 500x2680x2175
Machine weight (ton): 13
Details
- Quality Engagement
- Easy change and return
- Delivery Avaliable
- Favorable payment
