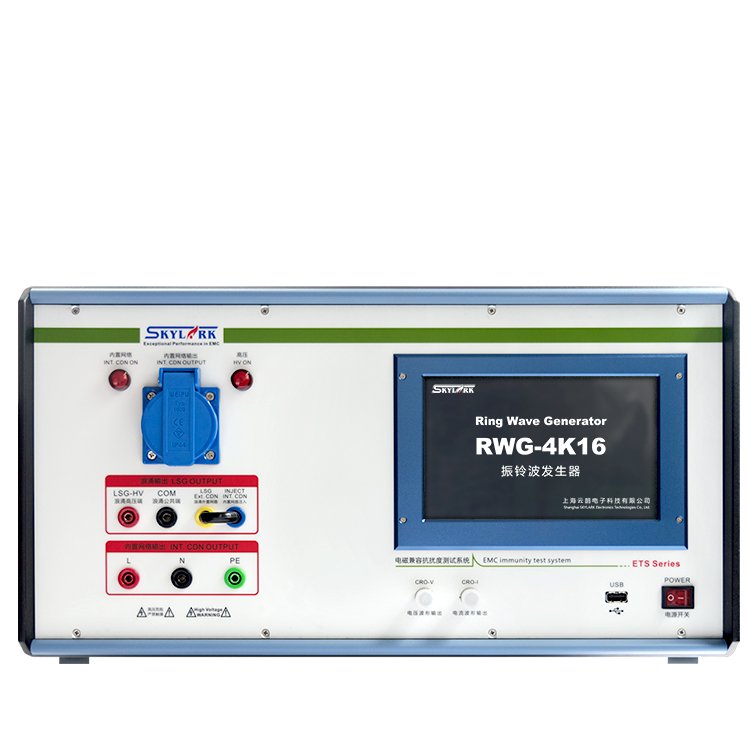

Skylark RWG-4K16 Ring wave generator (250V ~ 4000V ± 10%)
Manufacturer: Skylark Model: RWG-4K16 - Contact
Open voltage oscillation frequency (1/T): 100kHz±10%
Open output voltage (PK1):（250V~4000V）±10%
Open voltage waveform frontier (T1) (10% to 90%):0.5 s at PK1±30%
Open voltage attenuation rate:
- 40%<（PK2）/（PK1）<110%
- 40%<（PK3）/（PK2）<80%
- 40%<（PK4）/（PK3）<80%
Short-circuit current wave front (T2) (10% to 90%): P1 ≤0.9 s
Short-circuit current (PK1) at 3500V: 292A ± 10% at 12 o'clock
Short-circuit current (PK1) at 3500V: 117A ± 10% at 30 o'clock
Adjacent pulse interval time: 1s~99s
The number of pulses: 1 to 9999 times
The output method: Automatic positive and negative polarity switching or alternating
Output impedance:12Ω，30Ω
Phase injection mode: Asynchronous or synchronized (0 to 360 degrees)
Trial coupling/decoupling network
Optional coupling of the decoupled network of the lightning surge generator
