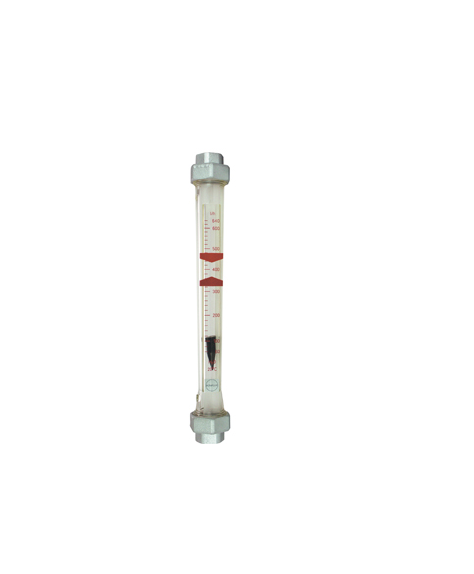

Senseca GKL-040GPW2500PM Flow Indicator (200 – 2500 l/h, with magnet, PSU tube, Malleable cast iron connection)
Manufacturer: Senseca Model: GKL-040GPW2500PM - Contact
Medium water / float PP
Metering tube: PSU
Switch: optional reed switch
Nominal width: DN 40
Process connection: malleable cast iron, female Rp 1 1/2''
Metering range: 200 – 2500 l/h
Qmax. : up to 6400 l/min
Tolerance: ±3 % of the full scale value
Max. process pressure: 15 bar up to 25°C
Medium temperature: -20..+60 °C optional 5..100 °C metering tube PSU
Ambient temperature: -20..+60 °C
Media: water
Electrical data: see "Additional devices for GK / GKL"
Materials medium-contact: PA 6-3-T, Malleable cast iron, FPM float made from PP or s.s.1.4571 ,optionally, measurement tube made from PSU
For details please see Datasheet
