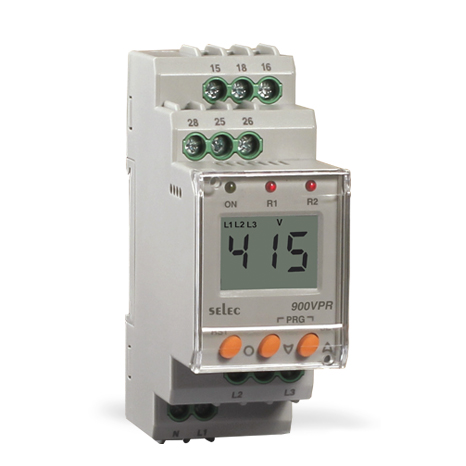

Selec 900VPR-2-280/520V Digital Voltage Protection Relay, Self Powered
Manufacturer: SELEC Model: 900VPR-2-280/520V Origin: India Guarantee: 12 Month - Contact
Measuring Parameter: Under Voltage, Over Voltage, Under Frequency, Over Frequency, Phase Asymmetry, Phase Failure, Phase Sequence
Electrical Connection: 3Ø-3W, 3Ø-4W
Display 3 Digits Liquid Crystal Display Without Backlight
Time Delay: 0-99.9 sec
Unbalance Voltage: 5 - 99.9%
Under/Over Frequency: 45 - 65 Hz
Output Contact: 2 x 1C/O (SPDT)
Output Rating: NC: 3A@250V AC, NO: 5A@250V AC (Res)
Operating Voltage: 280 to 520V AC (L-L), 161 to 300V AC (L-N)
