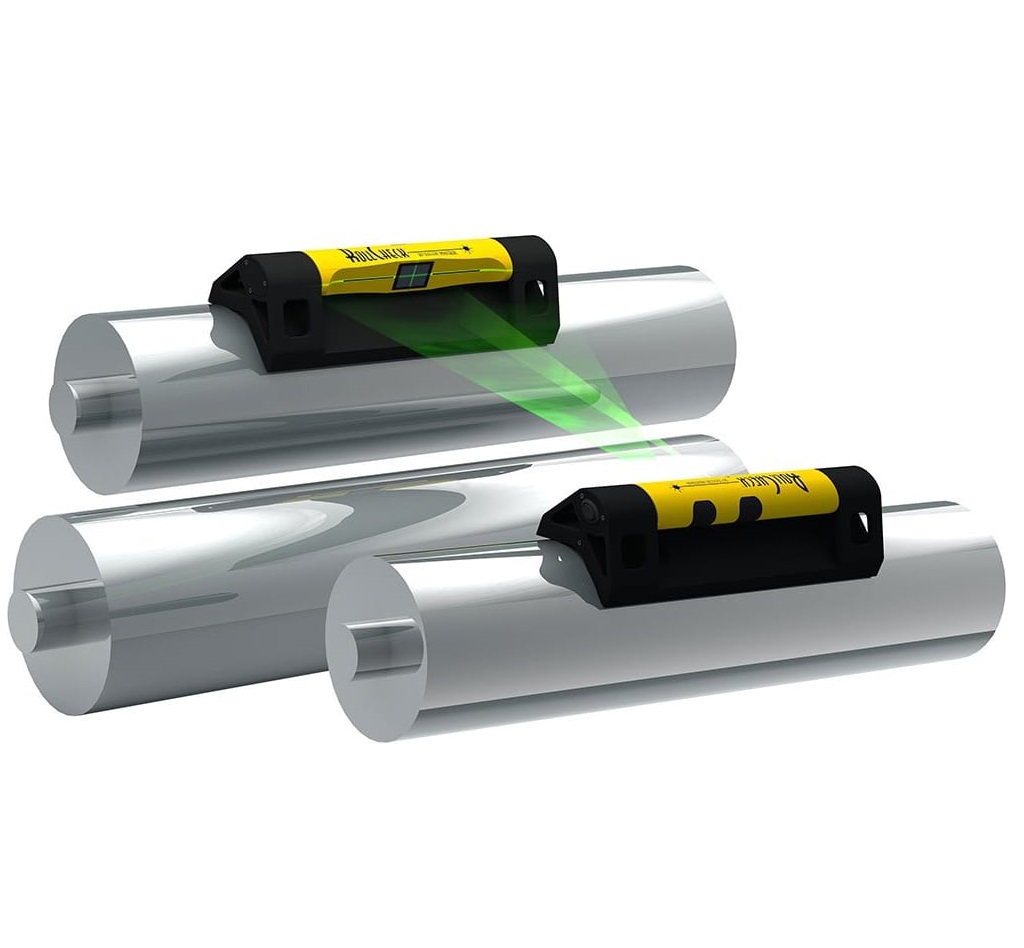

Seiffert SX-5150 RollCheck® Green Laser Roll Alignment System (3m; <0.03 mm/0.305 m)

TRANSMITTER SX-5150T

• Operating distance: Max. 10 ft. (3 m)

• Accuracy: < 0.001”/ft. (< 0.03 mm/0.305 m)

• Laser type: 2 ea. 532nm visible green laser lines, 45˚ full angle

• Laser power: < 1mW, Class 2

• Safety precautions: Do not stare into beam

• Laser compliance: CFR parts 1040.10 and 1040.11

• Laser line thickness: 0.017” (0.4318 mm) at 9 ft. (2.8 m)

• Laser calibration: Factory calibrated, check yearly

• Environmental protection: Water resistant, dust proof and impact resistant

• Controls: Laser ON/OFF rocker switch

• Battery type: High power polymer li-Ion rechargeable battery. 3.7v 4000mAh

• Operating time: 16 – 20 hours continuous at 72˚ F (22˚ C)

• Temperature:

Operating: 32˚F (0˚C) to 125˚F (52˚C)

Storage: -4˚F (-20˚C) to 140˚F (60˚C)

• Frame: Rigid aluminum frame, powder-coat paint finish

• Laser housing: Aluminum, powder-coat paint finish

• Mounting diameters: Roll diameters 4” (101mm) up to 8’ (2400mm)

• Mounting straps: Set of 2 attachment straps included:

2 ea. 10” (254 mm) to 45” (1143 mm) adjustable bungee straps for diameters up to 15” (381 mm)

2 ea. 10 ft. (3 m) adjustable straps for diameters up to 38” (965 mm)

• Weight: 4.8 lbs. (2.2 Kg)

• Dimensions: 12” (279mm) W x 4.25” (108mm) D x 3”(76mm) H

REFLECTOR SX-5150R

• Reflector size: 1” (25 mm) x 1.4” (36 mm)

• Frame: Rigid aluminum frame, powder-coat paint finish

• Reflector housing: Aluminum, powder-coat paint finish

• Mounting straps: Set of 2 attachment straps included:

2 ea. 10” (254 mm) to 45” (1143 mm) adjustable bungee straps for diameters up to 15” (381 mm)

2 ea. 10 ft. (3 m) adjustable straps for diameters up to 38” (965 mm)

• Weight: 5.2 lbs. (2.4 Kg)

• Dimensions: 12” (305 mm) W x 4.25” (108 mm) D x 3” (76 mm) H

CARRYING CASE

• Material: Black, high density hard polyethylene

• Dimensions: 20.5” (521 mm) W x 16.75” (425 mm) D x 8.5” (216 mm) H

• Insert: Die cut foam

• Carrying case weight: 14 lbs. (6.4 Kg)

• Total system weight: 24 lbs. (10.9 Kg)
