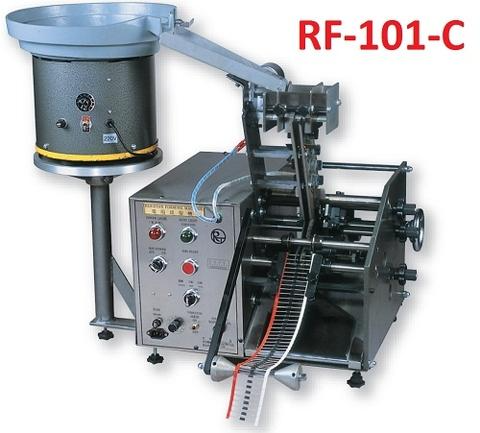

REN THANG RF-101-C Axial Lead Forming Machine

  • Manufacturer:REN THANG
    Model: RF-101-C
  • Contact
    • Request a Quotation

- Power: 110/220 V AC. 60/50HZ

- Dimension: 1050(L), 600(W), 650(H)mm

- Weight: 115 Kgs

- Body length 3.8~20 mm

- Body diameter 2.3~8 mm

- Shoulder 1.2 Min

- Height ( Critical) Fixed at 8 mm or tailor make parameter

- Lead length Adjustable

- Punching Height 2 mm (Fixed)

- Supporting point W + 0.4~0.5 mm

- Pitch A + 2C

- Wire diameter 0.6~ 1.3

- Capacity 110 pcs/Min
