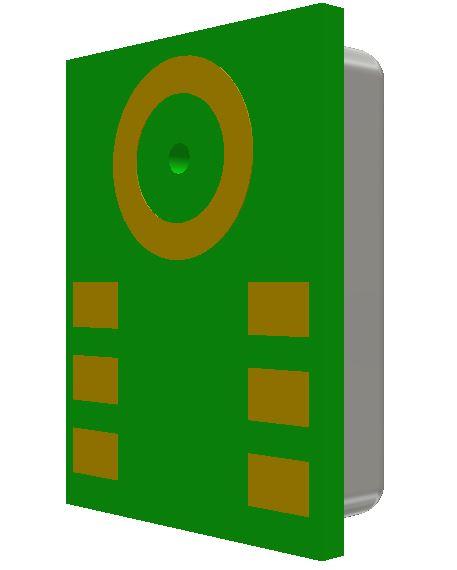

PUI Audio DMM-4026-B-I2S-R Digital MEMS MICROPHONE OMNI -26 DB 1.8VDC 1000uA
Manufacturer: PUI Audio Model: DMM-4026-B-I2S-R - Contact
Shape: Rectangular
Width: 3 mm
Length: 4 mm
Port Type: Bottom
Dimensions: 4 mm x 3 mm x 1 mm
Technology: Si
Output Type: Digital, I2S
Sensitivity: - 26 dB
Unit Weight: 12.327 g
Mounting Style: SMD/SMT
Frequency Range: 20 Hz to 20 kHz
Termination Style: Solder
Supply Voltage - Max: 3.6 VDC
Supply Voltage - Min: 1.5 VDC
Directional Properties: Omnidirectional
Operating Supply Current: 1 mA
Operating Supply Voltage: 1.8 VDC
SNR - Signal to Noise Ratio: 64 dB
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: - 40 C
