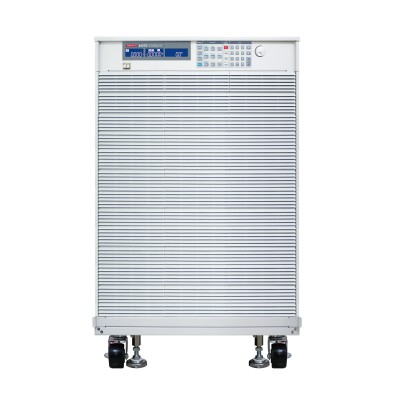

Prodigit 34225A Compact High Power DC Electronic Load (25KW, 800A,600V)

Power: 25KW
Current: 0~80A/0~800A
Voltage: 0~600V
Min.Operation Voltage: 10V@800A
Protections:
  Over Power Protection (OPP): 105%
  Over Current Protection (OCP): 105%
  Over Voltage Protection (OVP): 105%
  Over Temp Protection (OTP): Yes
CC mode:
  Range: 80A/0~800A
  Resolution: 1.334mA/13.34mA
  Accuracy:    ±0.1%
CR mode:
  Range: 0.75~11250Ω/0.0078~0.75Ω
  Resolution: 0.0222mS/0.013mΩ
  Accuracy:    ±0.2%
CV mode:
  Range: 600V
  Resolution: 10mV
  Accuracy:    ±0.05%
CP mode:
  Range: 2500W/25000W
  Resolution: 41.7mW/417mW
  Accuracy:    ±0.5%
Measurement mode (Load):
  Voltage: 0 ~ 60V/60~600V, ±0.025%
  Current : 0 ~ 80A/80~800A, ±0.1%
  Power : 2500W/25000W, ±0.125%
Short circuit current: 800A
Dimension (HxWxD): 1041 x 647 x 766 mm
Weight: 280 kg
Input: 115/230Vac, 50/60Hz
Optional interface: GPIB, RS232, USB, LAN
