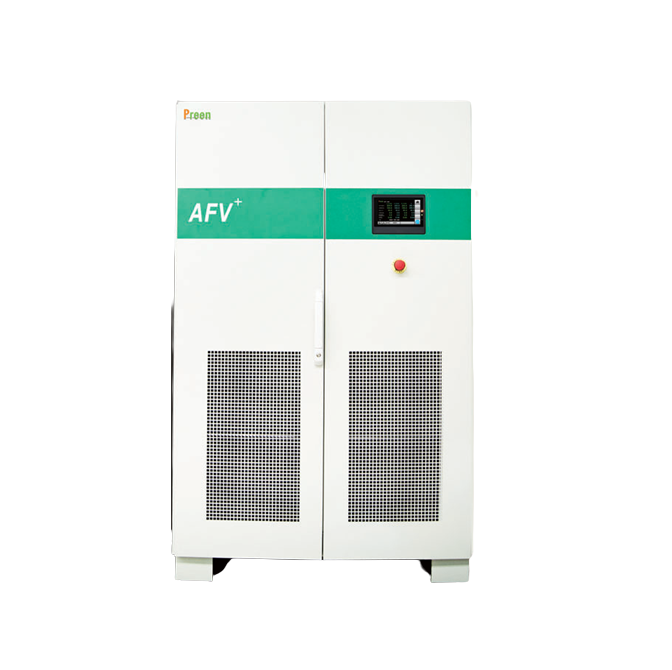

Preen AFV-PLUS-331000 High Power Programmable AC Power Source (output 3 phase, 1000kVA/300V/45-65Hz)

INPUT

Phase: 3Ø / 3Wire + G

Voltage: 380Vac ±15% (option: 400Vac, 240Vac or 480Vac)

Frequency: 47 - 63Hz

Max. Current: 2097.1A

Power Factor: ≥0.9(Max. Power)

OUTPUT

Power: ( VA ): 1000kVA

Phase: 3Ø / 4 Wire + G

Voltage Ranges

Low (V): 0V-155.0V(L-N)

High (V): 0V-310.0V(L-N)

Frequency Range: A : 45-500Hz;B : 45-120Hz

Max. Current (RMS)

Low (A): 2777.8A

High (A): 1388.9A

MEASUREMENT

Voltage Range: 0V-310.0V

Frequency Range: 45.0-500.0Hz

Current Range (RMS): 0 - 2777.8A

Power Range: 0 - 1000kW

GENERAL

Efficiency: ≥85% at Max. Power

HMI: Touch Screen, 7" Color TFT LCD

Opertional Temperature: 0°C~45°C

Humidity: 0~90% ( Non condensing )

Altitude: < 1,500m

Dimensions (H x W x D): (for 380V input voltage, Other voltage - Special order Options)

2050 x 6003 x 1520mm

80.7 x 236.3 x 59.8inch

Weight: 11080kg / 5024.9lbs (for 380V input voltage, Other voltage - Special order Options)
