PHYWE 15572-88 DEMO Advanced Physics Electricity/Electronics Building Block System

- Function and Applications:

Supplementary equipment set for the DEMO Set Electricity (15569-88). In combination with the set Electricity another 27 demonstration experiments can be performed:

• Capacitor (3 experiments)

• Diode (11 experiments)

• Transistor (13 experiments)

- Benefits:

• Continuing experiments from the field of electricity to the topic electronics

• Provides insight into semiconductor technology and deep going comprehension of the functional principle of capacitor, diode and transistor

• 100-percent compatibility between teacher and student building blocks

• Wiring diagram of the experiments can be completely illustrated

• Rugged magnetically adhesive puzzle blocks featuring contrasted screen-printed electric symbol on top

• The building blocks are easy to remove from experimental set-ups using the gripper rims

• Safe electric contact is guaranteed by the use of a unique puzzle block system with corrosion-free gold plated contacts

• Complete equipment set in addition to Electricity/Electronis 1

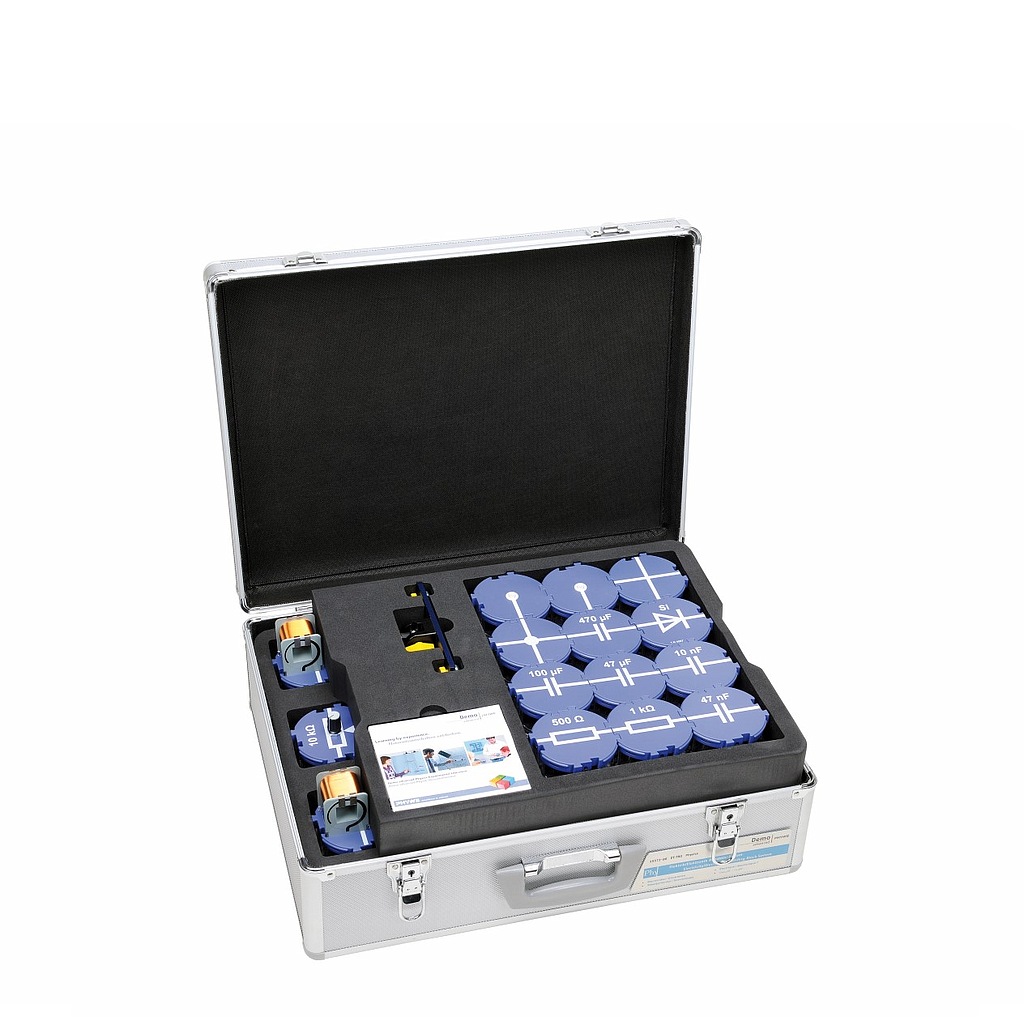

• The equipment is stored in a robust aluminum case with removable lid

• Foam insert for a quick control of completeness and secure transport of the set

• Matched with international Curriculum: all topics are covered

• Experiment guides for all experiments provided as PDF documents

• Easy teaching and efficient learning through the digital experiment descriptions enclosed as QR codes

- Equipment and Technical Data:

• The equipment set consists of all necessary components for the experiments

• Robust storage case with foam insert fitting to the contained equipment

- Scope of delivery:

• Junction, module DB: 09401-10, 2

• Wire crossing, insulated, module DB: 09401-05, 1

• Wire crossing,connected,module DB: 09401-06, 1

• Resistor 500 Ohm,module DB: 09413-50, 1

• Resistor 1 kOhm,module DB: 09414-10, 1

• Potentiometer 10 kOhm,module DB: 09425-10, 1

• Capacitor 10 nF,module DB: 09442-10, 1

• Capacitor 47 nF,module DB: 09442-47, 1

• Capacitor(ELKO)0.047 mF,module DB: 09445-47, 1

• Capacitor(ELKO),0.1 mF,module DB: 09446-10, 1

• Capacitor(ELKO),0.47 mF,module DB: 09446-47, 1

• Silicon diode 1N4007,module DB: 09451-00, 1

• Z-diode ZF 4.7,module DB: 09452-00, 1

• Photodiode,module DB: 09453-00, 1

• Light emitt. diode,red,module DB: 09454-00, 1

• Bridge rectifier,module DB: 09455-00, 1

• Bridge rectifier w. LED,module DB: 09455-01, 1

• Transistor BC337,module DB: 09456-00, 2

• Transistor BC327,module DB: 09457-00, 1

• Phototransistor, module DB: 09458-00, 1

• Transmitter f. opt. fiber,mod. DB: 09461-00, 1

• Optical fiber, 2m: 09461-02, 1

• Solar cell (2.5x5)cm,module DB: 09470-00, 2

• Coil 400 turns, module DB: 09472-01, 1

• Coil 1600 turns, module DB: 09472-02, 1

• Clamp on holder: 02164-00, 1

• Iron core, U-shaped, laminated: 07832-00, 1

• Iron core, I-shaped, laminated: 07833-00, 1

• Tightening screw: 07834-00, 1

• Magnet, bar-shaped, d = 18 mm, l = 70mm: 06318-00, 1

- Necessary accessories:

• DEMO Physics board with stand (02150-00)

• DEMO advanced Electronics necessary accessories (15572-01)

• DEMO advanced Physics Electricity/Electronics Building Block System, electricity (15569-88)

• DEMO advanced Electricity necessary accessories (15570-01)

- Optional accessories:

• Mobile Demo Lab for demonstration experiments with the a magnetic board (02190-93)

• DEMO advanced Electromagnetism and induction (15571-88)
