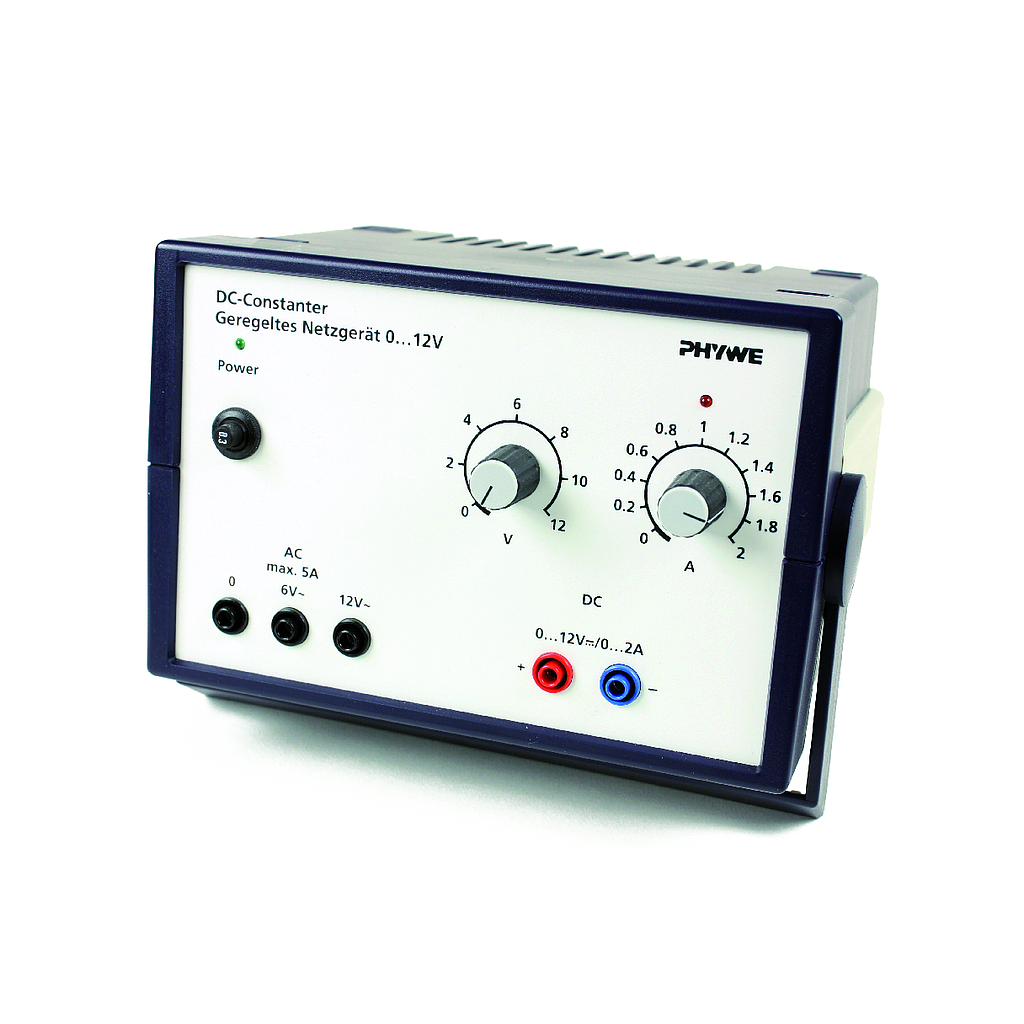

PHYWE 13506-93 Power Supply (1~12 VDC, 6 V/12 VAC)
Manufacturer: PHYWE Model: 13506-93 - Contact
Function and Applications
High quality power supply specially suitable for student experiments in electricity and electronics as well as for demonstration.
Equipment and Technical Data
Stabilised
Short-circuit-proof, external voltage-protected, floating ground
Output voltage: 1...12 V DC, 6 V / 12 V AC
Rated current: DC 0...2 A / AC 5 A
Ripple: max 1 mV
Internal Resistance: 10 mOhm
Mains voltage: 230 V
Dimensions: 194 x 140 x 130 mm
Weight: 3.2 kg
