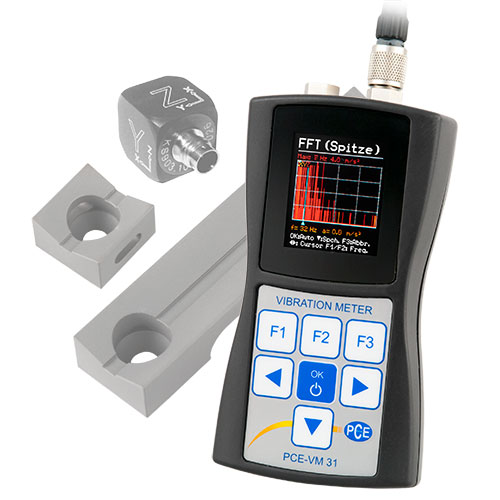

PCE VM 31-HA Human Vibration Analyzer
Manufacturer: PCE Model: VM 31-HA Origin: Germany Guarantee: 12 Month - Contact
Specification
Measuring range: Sensor with 1 mV/(m/s²); Sensor with 10 mV/(m/s²)
Acceleration: 1100 m/s² / 3609 ft/s²; 110 m/s² / 361 ft/s²
Velocity: 100 mm/s ... 10,000 mm/s; 10 mm/s ... 1,000 mm/s
4.0 in/s ... 394.0 in/s (1 kHz/1 Hz); 0.4 in/s ... 39.4 in/s (1 kHz/1 Hz)
Displacement (Peak): 250 µm ... 15,000 µm; 25 µm ... 1,500 µm
0.01 in ... 0.6 in (5 Hz/250 Hz); 0.001 in ... 0.06 in (5 Hz/250 Hz)
Dilivery Contents
1 x PCE-VM 31-HA Tri-Axial Accelerometer
1 x Hand-arm acceleration sensor KS903.10
1 x Handheld adapter for curved surfaces 142
1 x Handle adapter for curved surfaces 140
1 x Sensor cable (3 m / 9.84 ft long)
1 x USB cable
3 x Batteries
1 x User manual
1 x Carrying case
