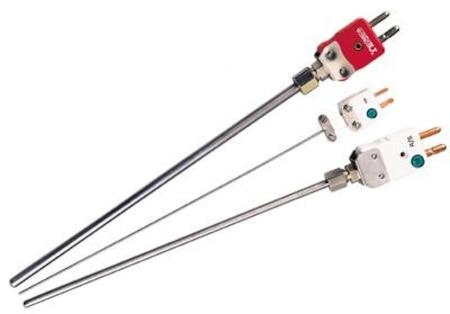

OMEGA XTA-W5R26-U-062-36-H-SX-6 Extreme Temperature Exotic Thermocouple Probes (Thermocouple, C, 2315 °C)
Manufacturer: OMEGA Model: XTA-W5R26-U-062-36-H-SX-6 - Contact
Wire Gauge: 36 AWG
Probe Length: 6 in
probe-length: 6 in
Junction Type: Ungrounded
Probe Diameter: 0.062 in
Sensing Element: None
Sheath Material: Tantalum
Probe Insulation: Hafnia
Thermocouple Type: C
Alloy Material (+): Platinum - 30% Rhodium
Alloy Material (-): Platinum - 6% Rhodium
Color Code Standard: ANSI
Electrical Connection: Ceramic Miniature Male Thermocouple Connector
electrical-connection: Ceramic Miniature Male Thermocouple Connector
Process Connection Size: N/A
Temperature Sensor Type: Thermocouple
Insulation Melting Point: 2830 °C
Process Temperature, Max: 2315 °C
Process Temperature, Min: 0 °C
Operating Temperature, Max: 2500 °C
Operating Temperature, Min: 0 °C
Calibration Temperature, Max: 1982 °C
Sheath Material Melting Point: 3000 °C
