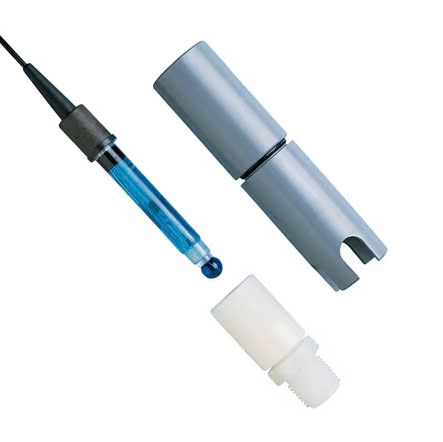

OMEGA PHE-5411-10 Preamplified Alpha® pH Electrodes (0 ~ 13)
Manufacturer: OMEGA Model: PHE-5411-10 - Contact
Description:Industrial in-line combination double junction electrode; MNPT threading, insertion length 1"; 10' of cable standard; dimensions: 127 x 25 mm (5 x 1")
Range: 0 to 13 pH
Features: Standard
Process Connection Type: NPT Male
Process Connection Size: 1/2"
Output: 0 pH = +414.1 mV;
14 pH = -414.1 mV @ 25°C (77°F)
Temperature: 0 to 100°C (32 to 212°F)
Impedance: 10 kΩ
Unity Gain: 1
Power Supply: ±1.5 Vdc to ±9 Vdc; 0.5 mA current
