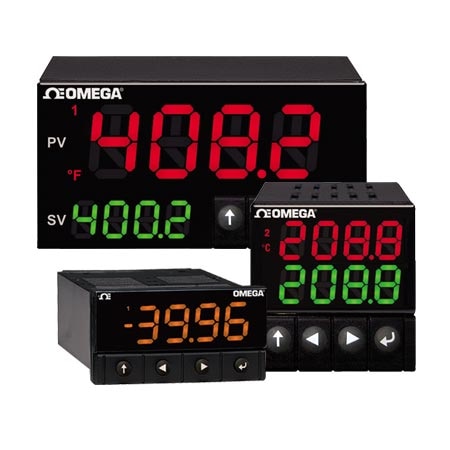

OMEGA CN8DPT-225-776-C24-EIP-DC 1/32, 1/16, and 1/8 DIN Universal High Performance Controllers (J, K, T, E, R, S, B, C, N, Dual 4 Digit LED, Ethernet, RS485, RS232, USB)

CMRR: 120 dB

Width: 96 mm

Height: 48 mm

Length: 127 mm

Accuracy: Selectable

Polarity: Bipolar

RTD Type: 100/500/1000 Ω Pt sensor, 2-, 3- or 4-wire; α= 0.00385, 0.00392 (100 Ω only), or α=0.003916 (1000 Ω only)

Approvals: UL, cUL, CE, UKCA

Isolation: ISOLATION Power to Input/Output: 2300 Vac per 1 min test; 1500 Vac per 1 min test (low voltage/power option) Power to Relays/SSR Outputs: 2300 Vac per 1 min test Relays/SSR to Relay/SSR Outputs: 2300 Vac per 1 min test RS232/RS485 to Inputs/Outputs: 500 Vac per 1 min test

Low Power: 4 W

Input Type: Thermocouple, RTD, Thermistor, mA, Voltage, Strain

Line Power: 5 W

Resolution: 0.1° temperature; 10 µV process

Form factor: 1/8 DIN

Low Voltage: 20 to 36 Vdc

form-factor: 1/8 DIN

Control Mode: Ramp and Soak, Autotune, Adaptive Tune, PID Control, On-off control, Alarms, Remote Setpoint

Current, Max: 4 to 20 mA, 0 to 24 mA scalable

Display Size: 21 mm (.82 in), 10 mm (.39 in)

Display Type: Dual 4 Digit LED

Line Voltage: 90 to 240 Vac ± 10%, 50 to 400 Hz*, 110 to 375 Vdc, equivalent voltage

Accuracy Note: Process Voltage Accuracy: 0.03% Process Current Accuracy: 0.03% Thermocouple Accuracy: Type J: 0.4°C (0.7°F) Type K: 1.0°C (1.8°F), 0.4°C (0.7°F) Type T: 1.0°C (1.8°F), 0.4°C (0.7°F) Type E: -1.0°C (1.8°F), 0.4°C (0.7°F) Type R: 1.0°C (1.8°F), 0.5°C (0.9°F) Type S: 1.0°C (1.8°F), 0.5°C (0.9°F) Type B: 1.0°C (1.8°F), 0.5°C (0.9°F) Type C: 0.4°C (0.7°F) Type N: 1.0°C (1.8°F), 0.4°C (0.7°F) RTD Accuracy: Pt, 0.00385, 100 Ω, 500 Ω, 1000 Ω: 0.3°C (0.7°F) Pt, 0.003916, 100 Ω: 0.3°C (0.7°F) Pt, 0.00392, 100 Ω: 0.3°C (0.7°F) Thermistor Accuracy: 2252 Ω: 0.2°C (0.35°F) 5K Ω: 0.2°C (0.35°F) 10K Ω: 0.2°C (0.35°F)

Input Voltage: -100 to 100 mV, -1 to 1 Vdc, -10 to 10 Vdc

Output Detail: 2 Solid State Relay & 1 Analog Output, Two DC Pulse and One Isolated Analog Output;Action: Reverse (heat), direct (cool), or heat/cool Auto-Tune: Operator initiated from front panel Adaptive Tune: User selectable; fuzzy logic continuous PID tuning optimization Control Modes: ON/OFF or the following time/amplitude proportional control modes; selectable manual or auto PID, proportional, proportional with integral, proportional with derivative Cycle Time: 0.1 to 199 seconds

Output Signal: Current, Voltage

Ramp and Soak: Profiling

Sampling Rate: 20 Hz (20 updates/second)

A/D Conversion: 24-bit sigma delta

Control Output: 2 SSR Relay, Analog output, 2 Isolated DC Pulse

Data Interface: Ethernet, RS485, RS232, USB

Digital Filter: Programmable

Supply Voltage: 20 to 36 Vdc

supply-voltage: 20 to 36 Vdc

Impedance Input: Input Impedances: Process/Strain: 10M Ω for ± 100 mV, 1M Ω for other voltage ranges; Process Current: 5 Ω; Thermocouple: 10K Ω max ; Auxiliary Input (Remote Setpoint): 3.5K Ω for 0 to 10V, 50K Ω for 0 to 1V, 50 Ω for current

Measuring Range: Process Voltage: ± 50 mV, ± 100 mV, ± 1, ± 10 Vdc Process Current: Scalable within 0 to 24 mA Thermocouple: Type J: -210 to 1200°C Type K: -270 to -160°C, -160 to 1372°C Type T: -270 to -190°C, -190 to 400°C Type E: -270 to -220°C, -220 to 1000°C Type R: -50 to 40°C, 40 to 1788°C Type S: -50 to 100°C, 100 to 1768°C Type B: 100 to 640°C, 640 to 1820°C Type C: 0 to 2320°C Type N: 250 to -100°C, -100 to 1300°C RTD: Pt, 0.00385, 100 Ω, 500 Ω, 1000 Ω: -200 to 850°C Pt, 0.003916, 100 Ω: -200 to 660°C Pt, 0.00392, 100 Ω: -200 to 660°C Thermistor: 2252 Ω: -40 to 120°C 5K Ω: 30 to 140°C 10K Ω: 20 to 150°C

Remote Setpoint: Current, Voltage

Thermistor Type: 2252 Ω, 5K Ω, 10K Ω

Measurement Type: Current, Strain, Temperature, Voltage

Number of Inputs: 1

Cutout Dimensions: 45 x 92 mm

Display Type Note: 4-digit, 9-segment Dual LED Display

Enclosure Ratings: NEMA Type 1

Relative Humidity: 90% RH, non-condensing

Supply Power Note: 90 to 240 Vac ± 10%, 50 to 400 Hz*, 110 to 375 Vdc, equivalent voltage.Line Power: 5W, Low Voltage: 20 to 36 Vdc; Low Power: 4W.Low Voltage/Power Option: External power source must meet Safety Agency Approvals; units can be powered safely with 24 Vac power, but no certification for CE/UL is claimed; Excitation Voltage Note- Firmware selectable (no jumpers to set) to 5, 10, 12, and 24 Vdc @ 25 mA

Supply Power Type: DC

Thermocouple Type: J, K, T, E, R, S, B, C, N

Data Interface Note: Connection: USB: Female micro-USB Ethernet: Standard RJ45 USB: USB 2.0 host or device Ethernet Standards Compliance: IEEE 802.3 10/100 Base-T autoswitching, TCP/IP, ARP, HTTPGET

Input Configuration: Differential

Set Point Adjustment: Menu Configurable

Additional Features 1: Programmable 3 Color Display

Electrical Connection: USB Micro-B Female, Screw Terminal, RJ45

Temperature Stability: Temperature Stability:RTD: 0.04°C/°C;Thermocouple @ 25°C (77°F): 0.05°C/°C (cold junction compensation);Process/Strain: 50 ppm/°C

External Fuse Required: External Fuse Required: Time-Delay, UL 248-14 Listed: 100 mA/250 V; 400 mA/250 V (low voltage option) ; Time-Lag, IEC 127-3 Recognized: 100 mA/250 V; 400 mA/250 V (low voltage option)

Number of Control Outputs: 5

Warm-Up to Rated Accuracy: 30 min

Operating Temperature, Max: 50 °C

Operating Temperature, Min: 0 °C
