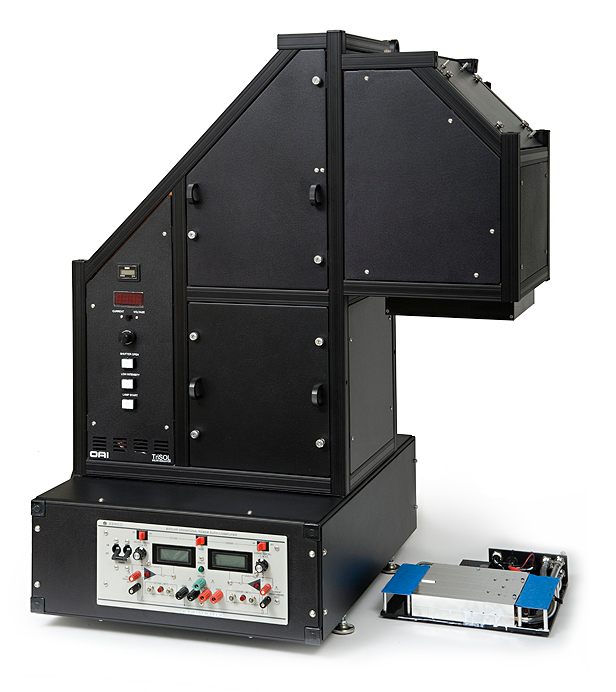

OAI Large Area PV Solar Simulator TriSOL™ Large Area Solar Simulator
Manufacturer: OAI Model: Large Area PV Solar Simulator - Contact
Special: Constant Current and Intensity
Spectral Type: AM 1.5G and D, AM0
Spectrum Range Options: 1 : 280-1800nm
2: 300 - 1800nm
Beam Direction Configuration Options: 1. Horizontal
2. Downward
3. Upward
Illumination Area: up to 2m x 2m
Collimated angle: Half angle: <±2°
Typical Power Output: 100mW/cm2(1Sun)
Spatial Uniformity: ≤5% (Class B)
Temporal (ST) : <0.5% STI &
<2.0% LTI (Class A)
Spectral Match: ≤±15% (Class A+)
Working Distance: up to 5m
Lamp Power: up to 16 x 4KW or 16 x 7KW
Power Requirements: up to 76KW 400/230VAC,5Wire, 3P, 200A
