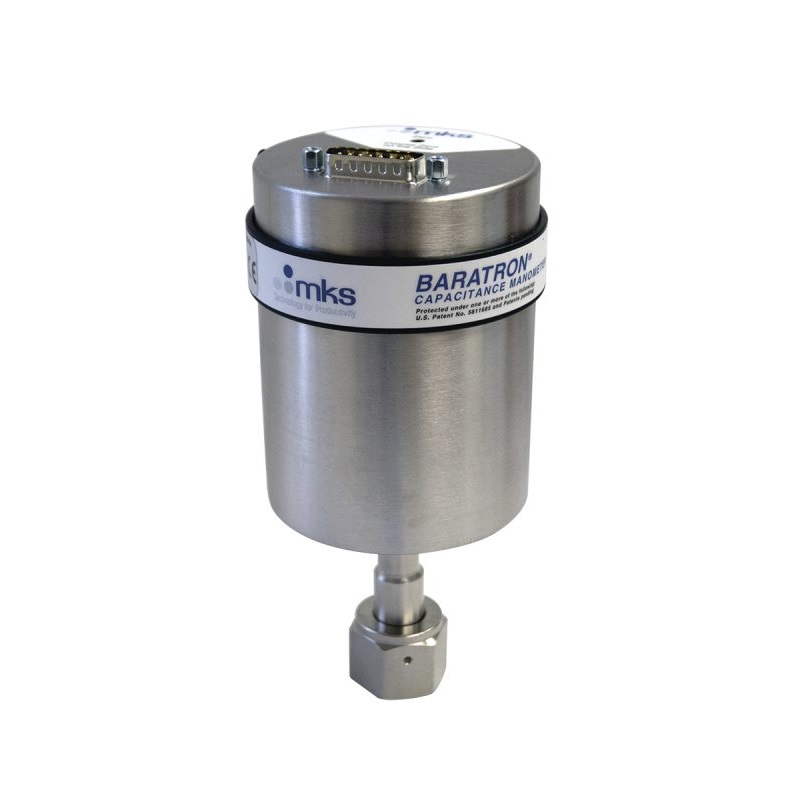

MKS 627H Heated Absolute Baratron® Capacitance Manometer (0.1 Torr; 45°C; 8 VCR)

Measurement Type: Absolute

Sensor Temperature: 45°C

Full Scale Range: 0.1 Torr

Accuracy: 0.12% of Reading

Resolution: 0.001% of Full Scale

Fitting Type: 8 VCR female

Analog Output: 0-10 VDC

Analog Connector: 15-pin D-sub with Thread Locks

Calibration: Vertical

Zero Temperature Coefficient: 0.005% of Full Scale/°C

Span Temperature Coefficient: 0.02% of Reading/°C

Operating Temperature Range: 15-40°C

Volume: 6.3 cc

Warm-up Time: 4 hours

Overpressure Limit: 45 psia (310 kPa) or 120% of Full Scale, whichever is greater

Exposed Materials: Inconel

Power Requirements: ±15 VDC ±5% @ 0.25 Amps (max.)

Indicators: Heater Status LED

Compliance: CE

For specific range please check the attachment below!
