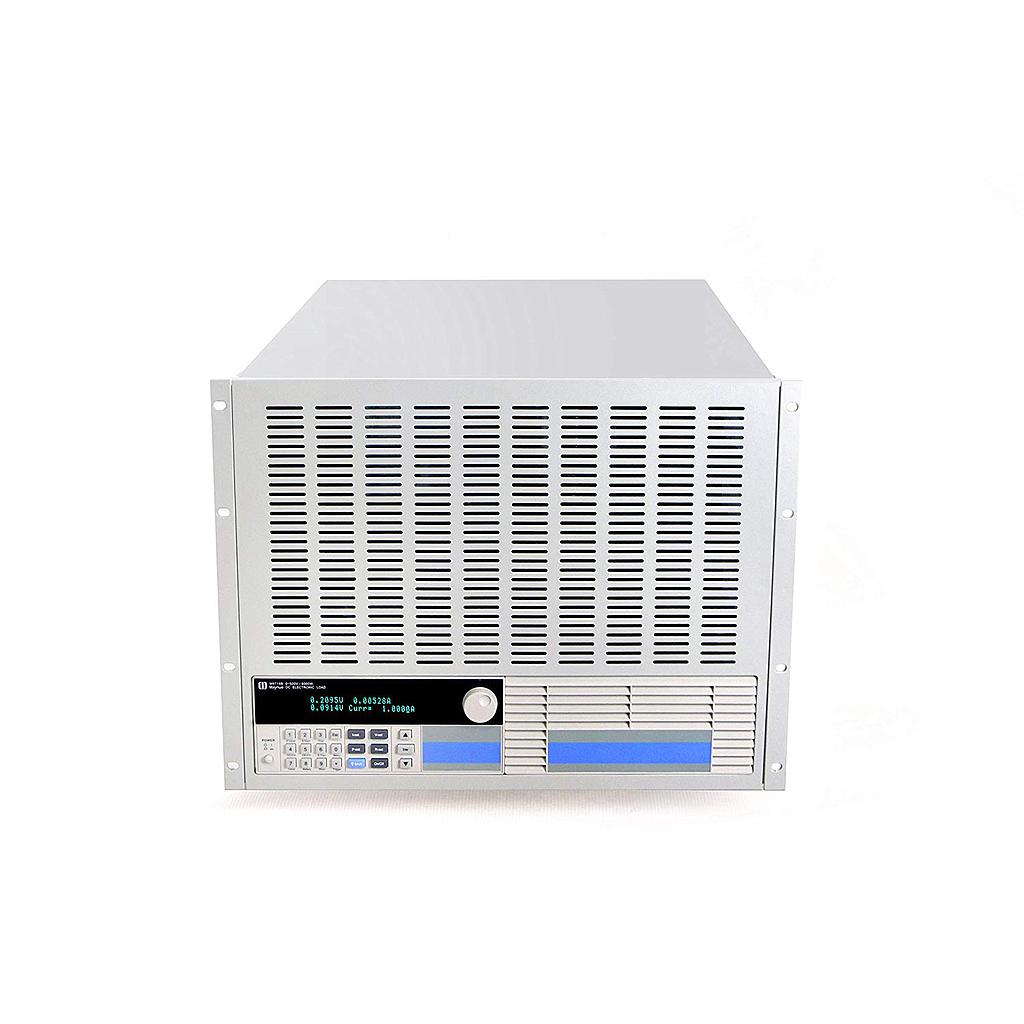

Maynuo M9717B DC electronic load (0-120A/0-500V/0-3600W)

Manufacturer: MAYNUO
Model: M9717B
Contact
- Request a Quotation

Specifications
Manufacturer Info

Power: 3600W
Current: 0-120A
Voltage: 0-500V
Size: 489.5 * 357 * 538.5 mm
Weight: 70kg

Details

Model	M9717B
Input Rating	Power	3600W
	Current	0-120A
	Voltage	0-500V
CC Mode	Range	0-12A	0-120A
	Resolution	1mA	10mA
	Accuracy	0.05%+0.05%FS	0.1%+0.05%FS
CV Mode	Range	0.1-19.999V	0.1-500V
	Resolution	1mV	10mV
	Accuracy	0.03%+0.02%FS	0.03%+0.05%FS
CR Mode (Voltage and current input value >=10% full measurement)	Range	0.03-10K Oh	0.03-5K Oh
	Resolution	16bit	16bit
	Accuracy	0.1%+0.1%FS	0.1%+0.1%FS
CW Mode (Voltage and current input value >=10% full measurement)	Range	0-3600W	0-3600W
	Resolution	1mW	10mW
	Accuracy	0.1%+0.1%FS	0.1%+0.1%FS
Volatage Measurement	Voltage	0-19.999V	0-500V
	Resolution	1mV	10mV
	Accuracy	0.015%+0.03%FS	0.015%+0.05%FS
Current Measurement	Current	0-12A	0-120A
	Resolution	0.1mA	1mA
	Accuracy	0.03%+0.05%FS	0.1%+0.08%FS
Power Measurement(Voltage and current input value >=10% full measurement)	Power	100W	3600W
	Resolution	1mW	10mW
	Accuracy	0.1%+0.1%FS	0.1%+0.1%FS
Battert Test	Battery Input:0.5-120V; Max. Measurement:Capacity=999AH; Resolution=0.1mA; Time Range=1S-16H
Dynamic Test	Dynamic List: 0-25kHZ; 2.5A/uS; T1&T2:60uS-999S; Accuracy:+15% offset+10%FS
Current soft-startup Time	1mS;2mS;5mS;10mS;20mS;50mS;100mS;200mS Accuracy:+15% offset+10%FS
Short Circuit	Current(CC)	=13.2A	=132A
	Voltage(CV)	0V
	Resistance(CR)	=45m Oh
Temperature	Operating	0~40^oC
Temperature	Nonoperating	-10^oC~70^oC
Dimension	WHD(mm)	489.5357538.5
Weight	Kg	70

Features:

Six high speed operation modes: CC,CR,CV,CW,CC+CV,CR+CW
Over current, over voltage, over power, over heat, polarity reversed protection
High-luminance VFD screen with two lines& four channels display
Intellegent fan system fan will be automatically initiated according to the temperature
Soft start time setting, carrying the power supplier according to the voltage value set
Battery testing and short-circuit function
Available of dynamic testing and rising edge and falling edge setting
Supporting external trigger input and output
External current waveform monitor terminal
Supporting remote voltage compensation and multidata storage
Power-on-self-test, software calibration and standard rack mount
Communication mode: RS232/RS485/USB.

Application:

Production line(cell phone charger, cell phone battery, electric vehicle battery, switching power supplier, linear power supplier), research insititutes, automotive electronics, aeronautics and astronautics,ships, solar cells fule cell, etc.
