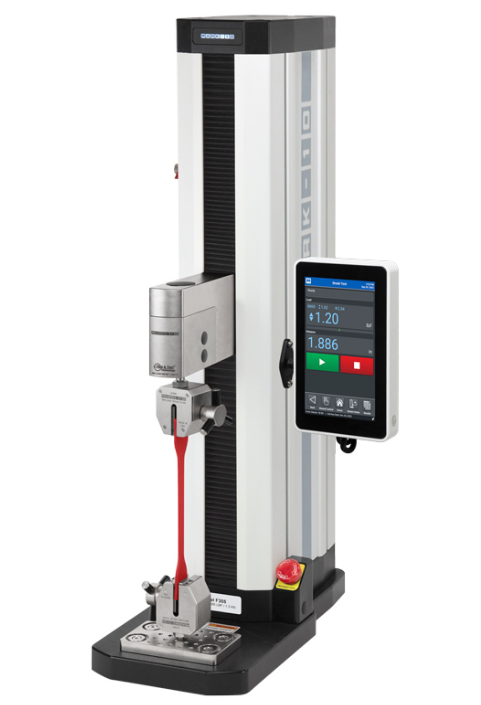

Mark-10 F305-EM Digital Force Testers (300 lbF[1.3 kN])
Manufacturer: Mark-10 Model: F305-EM - Contact
Load capacity: 300 lbF[1.3 kN]
Maximum travel: 18.0 in[457 mm]
Standard speed range: 0.5 - 13 in/min[13 - 330 mm/min]
Optional speed range: 0.02 - 45 in/min[0.5 - 1100 mm/min]
Peak sampling rate: 5.000 Hz
Data acquisition rate: 100 Hz (requires Graphing & Reporting option)
Speed accuracy: ±0.2% of setting, virtually no variation with load
Position accuracy: ±0.006 in [0.15 mm], at any load or position
Distance resolution: 0.001 in [0.02 mm]
Limit switch repeatability: ±0.001 in [0.03 mm]
Overload protection: Motor stops at 120% of full scale of the force sensor
Power: Universal input 100-240 VAC, 50/60 Hz, 120W
Fuse type: 2.5 A, 250V, 3AG, SLO BLO
Weight: 60 lb[27 kg]
