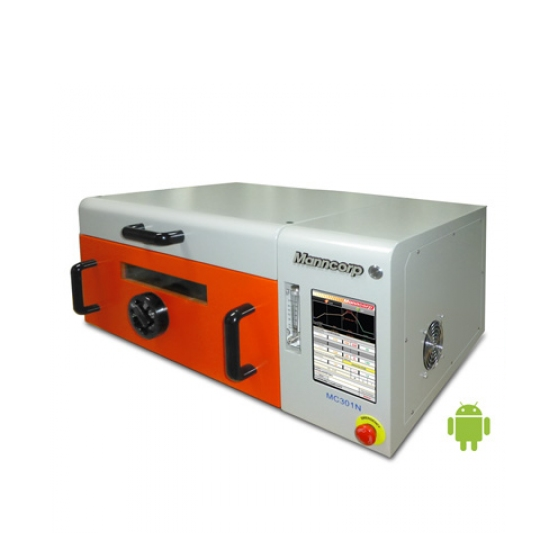

Manncorp MC-301N Benchtop Batch Reflow Oven
Manufacturer: MANNCORP Model: MC-301N Origin: China Guarantee: 12 Month - Contact
Manufacturer: Manncorp - USA
Model: MC-301N
Origin: China
Warranty: 12 months
Applicable Solder Types: Lead-Free or SnPb
Heating Method: IR & Forced Hot Air Convection
User Interface: Android Software Platform; Ultra High Resolution Touchscreen; Integrated WiFi & Networking
Effective Soldering Area: 9.84” x 7.87” (250 mm x 200 mm)
Heating Chamber Size: 13.78" x 9.84" (350 x 250 mm)
Temperature Range: Ambient - 310°C
Temperature Precision: ±2 °C
Temperature Control Method: PID Control; SSR Contactless Switch Circuit
Warm-up Time: approx. 2.5 min.
Power: 3.6 KW (avg.); 6.3 KW (max.)
Voltage: 220 V, Single Phase, 50/60 Hz
Exhaust Requirement: 6.3 L/Min., .22 CFM
Exhaust Temperature (approx.): 90°C
Dimensions: 27.2" L x 18.9" W x 11" H(690 mm L x 480 mm W x 280 mm H)
Weight: approx. 208 lbs. (95 Kg)
