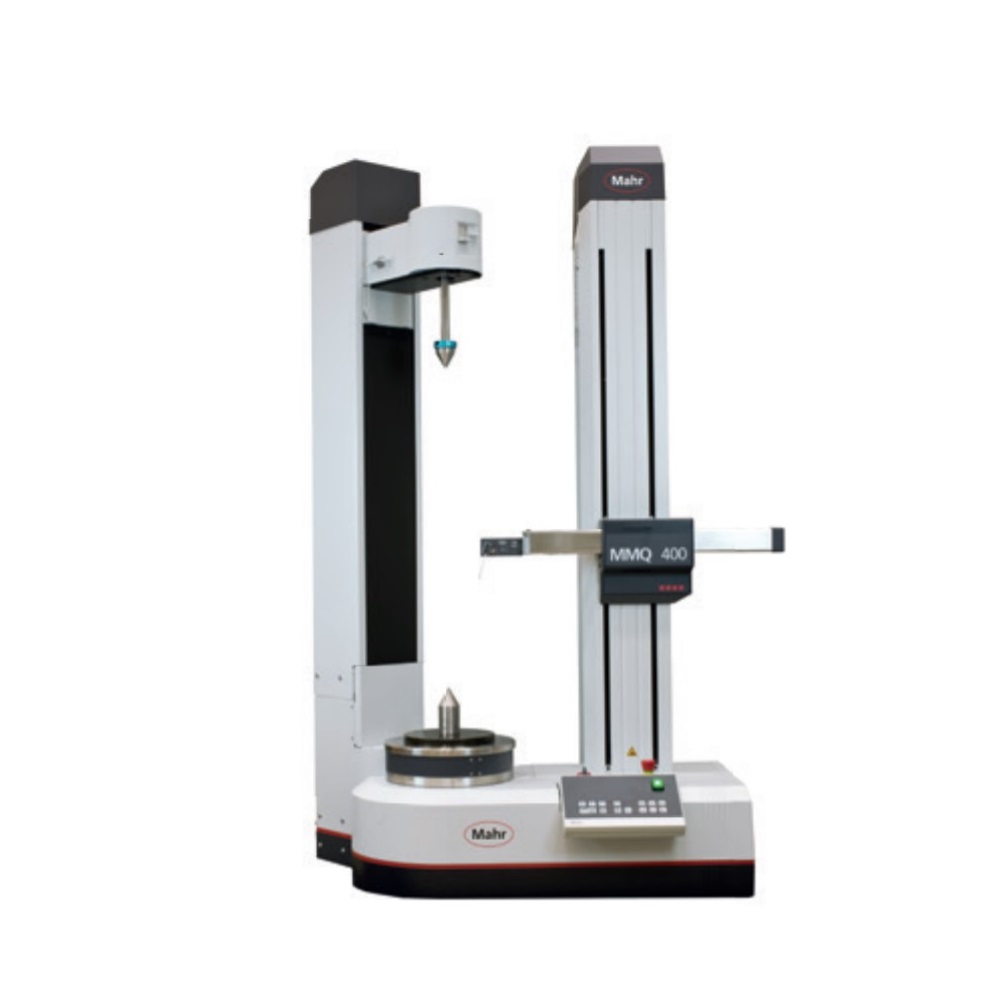

Mahr 5440782 Universal Form Measuring Machine (MMQ 400-2, Z 900, X 280mm, automatic)
Manufacturer: Mahr Model: 5440782 Guarantee: 12 Month - Contact
Roundness deviation (µm+µm/mm measuring height) *: 0,01 + 0,00025
Axial runout deviation (µm+µm/mm measuring radius) *: 0,02 + 0,0001
Centering and tilting table: automatic
Table diameter (mm): 285
Table load capacity, centered (N): 400
Speed (rpm) 50 Hz / 60 Hz: 0.2-15
Measuring path, motorized Z (mm): 900
Parallelism deviation Z-/C axis in tracing direction, measuring path (µm): 2
Measuring speed (mm/s), Z axis: 0,1-30
Positioning speed (mm/s), Z axis: 0,5 -100
Measuring path, motorized X (mm): 280
Perpendicularity X/C axis, measuring path (µm):2
Positioning speed (mm/s), X axis: 0,5-30
Measuring speed (mm/s), X axis: 0,5-10
OPTIONS:
MarForm MMQ 400
• Roughness measurement
• Switch between form probe with ruby ball and roughness probe PHT 6– 350
• Piston testing with MarWin Evaluation Software
• Shaft twist testing and analysis with MarWin
• Cam profile testing
• Bar to bar variation analysis at commutators
• Contour measurement and evaluation
• Path control (MCPC)
• Shape evaluation
• Vibrational velocity analysis
• Dominant roundness waviness (MBN 10455)
