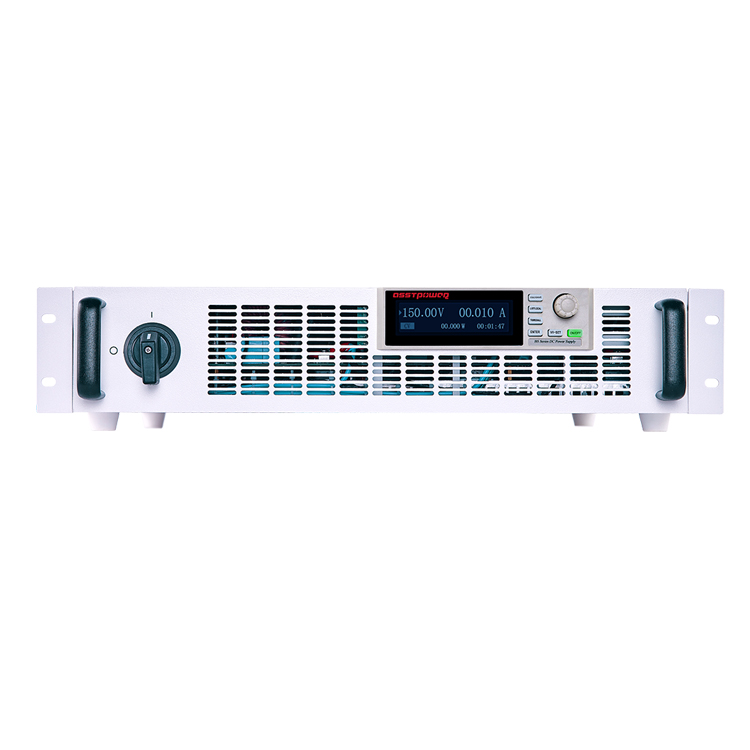

JINKO JK99500-40-300 Programmable DC Power Source (0-40V, 0-300A)
Manufacturer: JINKO Model: JK99500-40-300 - Contact
Rated output value:
Voltage adjustable range (1): 0-40V
Current adjustable range (2): 0-300A
Rated power (OPP = 105% rated value): 5000W
Input characteristics:
Voltage/Frequency: Single-phase 220VAC/Three-phase 380VAC±15%/47~63Hz
Power factor (Typical value): 20.97@380Vac, rated output power
Efficiency (at 380Vac at full load): ≥ 86%
Constant Voltage Mode (CV):
Source effect (3): 0.05%+10mV of the rated output voltage
Load effect (4): Specifications within 100V: 0.5%+10mV of the rated output voltage; Specifications above 100V (including): 0.2%+10mV of the rated output voltage; Specifications above 500V (including): 0.1%+10mV of the rated output voltage
Ripple and noise (p-p, 20MHz): 360mV
Ripple (r.m.s. 5Hz~1MHz): 85mV
Transient response time: ≤2ms (when the load changes to 10-90% of the rated output current, the output voltage recovers within the 0.5% range of its rated output)
Start delay: ≤6S
Constant Current Mode (CC):
Source effect (3): 0.05%+10mA of the rated output current
Load effect: Specifications above 30A (including): 0.2%+10mA of the rated output current; Specifications within 30A: 0.3%+10mA of the rated output current; Specifications within 10A (inclusive): 0.5%+10mA of the rated output current
Ripple (r.m.s. 5Hz~1MHz):≤600mA
Applicability:
Working environment temperature/Storage temperature: 0°C~+40°C/-20°C~+70°C
Working humidity/Storage humidity: 2090%RH (without formation of steam) / 1095%RH (without formation of steam)
Cooling method: Temperature control speed regulating fans, ensure the noise and operating temperature of the fan under the premise of the normal operation of the power supply.
Dimension/Weight:
Size (not including output Copper busbar, etc): 480(430)W×88H×535Dmm (Standard 2U)
Weight: 25kg
Datasheet
Overview
JK99500 series wide-range programming DC power supply has an ultra-wide working field. The combination of voltage and current settings can achieve a constant power supply of 2-3 times. One JK99500 can replace multiple traditional DC power supply of different specifications, reduce repetitive investment costs. This series has two working modes: constant voltage CV and constant current CC. It can be applied in automatic testing, process control, battery charging and aging testing, etc., of these occasions need high-quality DC stable power supply. This series of products has a zero voltage "soft switch" function, which can reduce the transient stress of the switch, thereby having a low output noise. Soft switch can also improve efficiency and reduce heat, so that the power supply has higher stability.
Features
High performance, high power density, small and lightweight
Can be compatible with single phase 220V and three-phase 380V grid input
Input is with PFC power factor correction, the power factor 20.97
OLED display 5-digit display, supports Chinese and English dual-language menu switch display
The two working modes of CV constant voltage and CC constant current automatically switch according to the load current size
Multifunction button and encoder combination operation, support
List dynamic programming output, multi-data storage
Zero voltage and current wide range adjustment, can be series-parallel connection expand power/current/voltage
With voltage and current preset function
Voltage and current slope control
Finally set memory function; timer output function
Standard simulation monitoring interface and RS-485 communication interface, support MODBUS standard communication protocol
