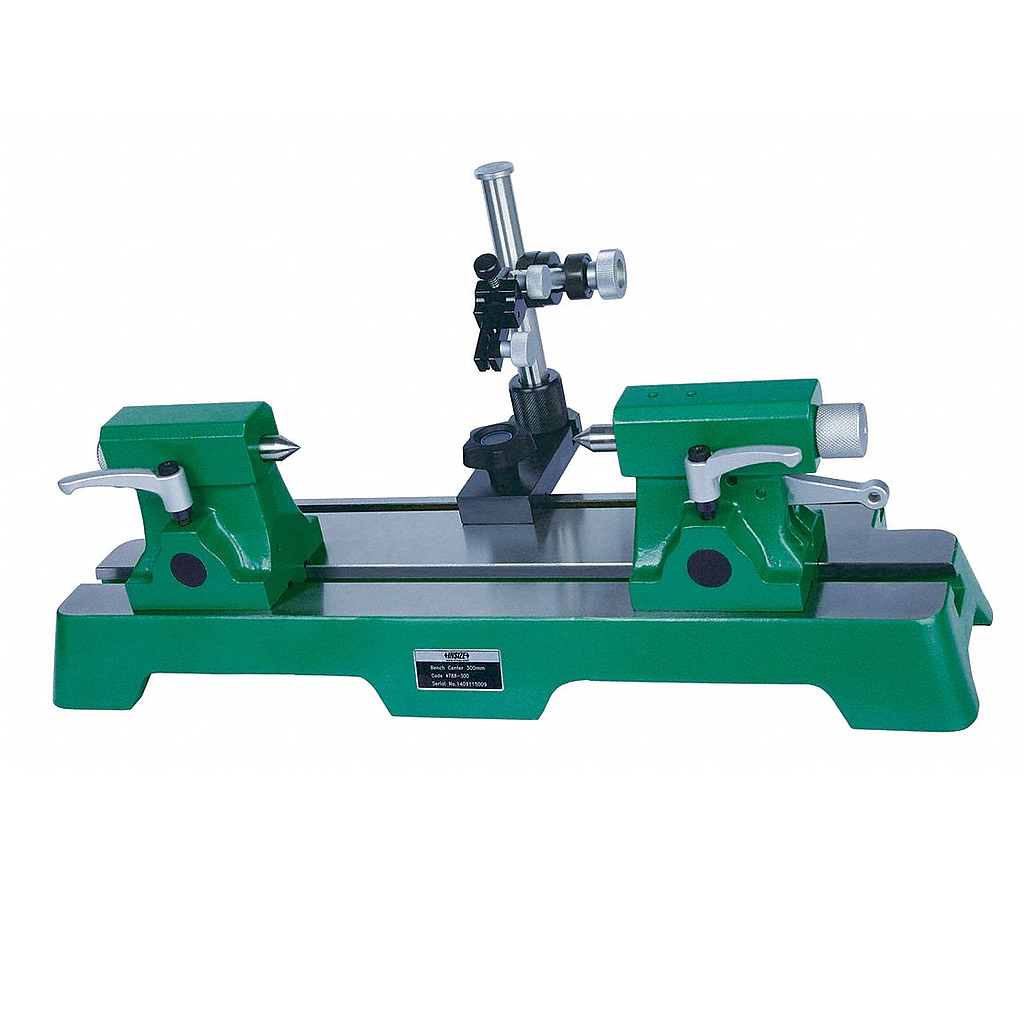

INSIZE 4788-D3 Bench Center (0.010mm; 90mm; 300mm)

  • Manufacturer:INSIZE
    Model: 4788-D3
    Guarantee: 12 Month
  • Contact
    • Request a Quotation

Low accuracy

Parallelism: 0.010mm

Runout accuracy: 3μm

Center height: 90mm

Distance between two centers: 300mm

L: 590mm

W: 195mm

H1: 175mm

Diameter of center (Ød): 20.0mm

Taper of center: MT2

Weight: 36kg

Load: 25kg

Optional accessory:

- Umbrella center

- Rotary center
