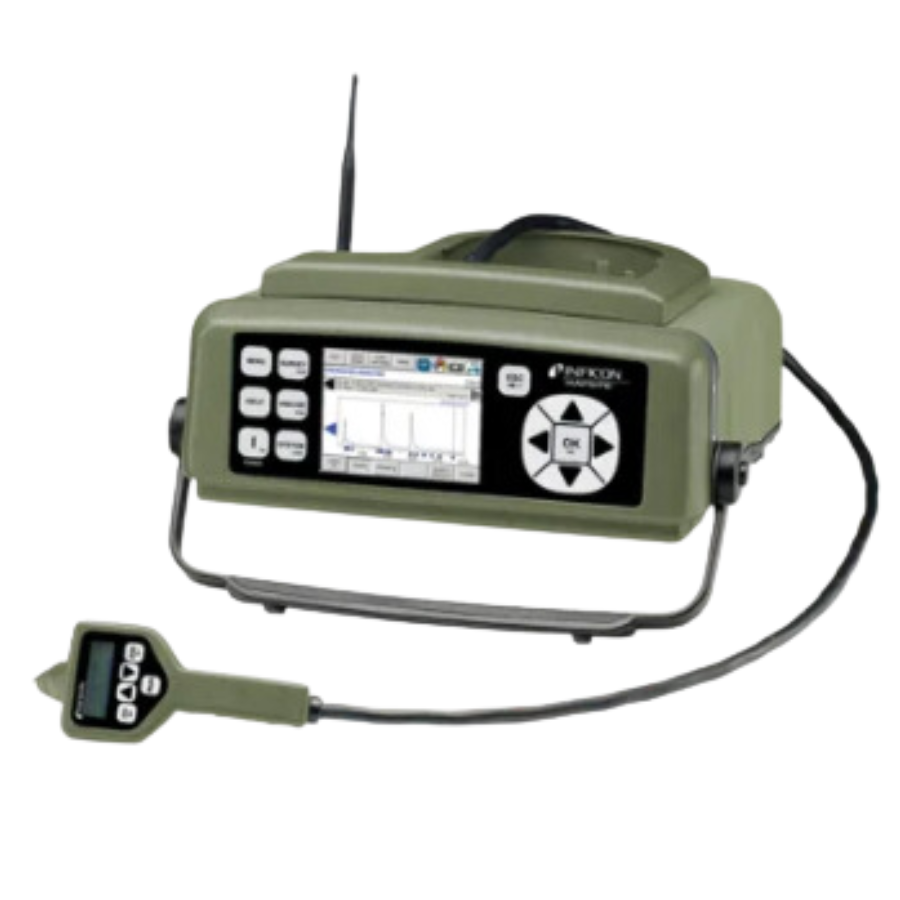

INFICON HAPSITE ER Mass Spectrometer (GC/MS)

Operating temperature: 5 – 45°C

L x W x H:  46 x 43 x 18 cm (18 x 17 x 7 in.)

Weight:  Approximately 19 kg (42 lb.) with battery

Power supply:  Rechargeable NiMH battery pack or AC converter

Battery life:  2 – 3 hrs

Power requirement:  24 V (dc), 30 watts at normal operating conditions

Hard drive:  16 GB internal storage

Flash drive:  USB

Display:  6.5 in. VGA color display with touch screen

Sample introduction:  Air probe (included) or optional accessory

Carrier gas:  Nitrogen

Data system:  Intel® Pentium® processor

Communication:  802.11G wireless or direct Ethernet connection

Data analysis:  AMDIS Mass Spectral Libraries, NIOSH, (NIST on optional laptop)

Sample type:  VOCs and select SVOCs

Detection limit:  PPT for most analytes

MASS SPECTROMETER

Mass range:  41 – 300 AMU (1 – 300 AMU using SIM)

Scan rate:  1000 AMU/sec @ 10 points per AMU

Ionization mode:  70 eV Electron Impact

Detector:  Electron multiplier

Vacuum system:  Non-evaporative getter (NEG) pump

Dynamic range:  7 decades

GAS CHROMATOGRAPH

GC column:  15 M, Rtx-1MS, 0.25 mm i.d., 1.0 um df (included)

Temperature range:  45 – 200°C
