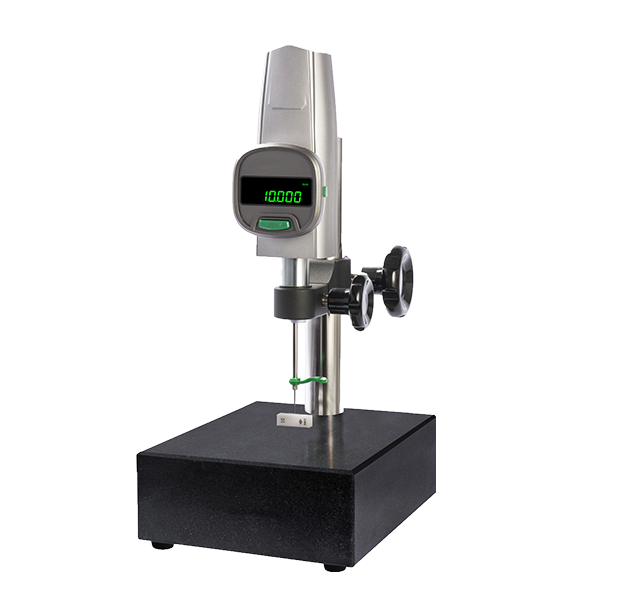

Hoyamo HG50-225A Digital Height Gauge (0-50mm)
Manufacturer: Hoyamo Model: HG50-225A P/N: 501-502 Origin: China - Contact
Measurement Range: 0-50mm
Accuracy: ≤3um
Minimum: 1μm
Measurement Speed: Maximum 5000mm/s
Force: 1.0-1.5N
External Output: Data Interface、USB
Display: 7 bit Liquid Crystal Display Device
Probe: Spherical Probe, Flat Probe, Needle Probe
Unit: mm、inch( Convertible )
Operating Environment: Temperature：0-40°C Humidity：20-80%
Measuring Table: 200x250mm Marble
Power Adapter: Input：AC100-240V50/60HZ Output：DC5V/1A
Standard Accessories: Marble Table，Spherical Probe, Flat Probe, Needle Probe
Optional Accessories: Special-shaped Probe, Mobile power supply, Low Force Measuring Device
Dimension: 250×200×387mm
Weight: 11.6kg
Production Feature：
Accuracy≤3um, Resolution 1um
Height, Depth, Thickness, Flatness Measurement
Steps and Deep Hole Measuring
Reset from Anywhere
MAX, MIN, MAX-MIN Measurement
TOL Tolerance Setting
Built-in rechargeable battery, 24 Hours Endurance
Replaceable Probe
7 Bit Liquid Crystal Display Device
Wired Data Output
Optional Mobile Power Supply
High Accuracy Marble Measuring Table
