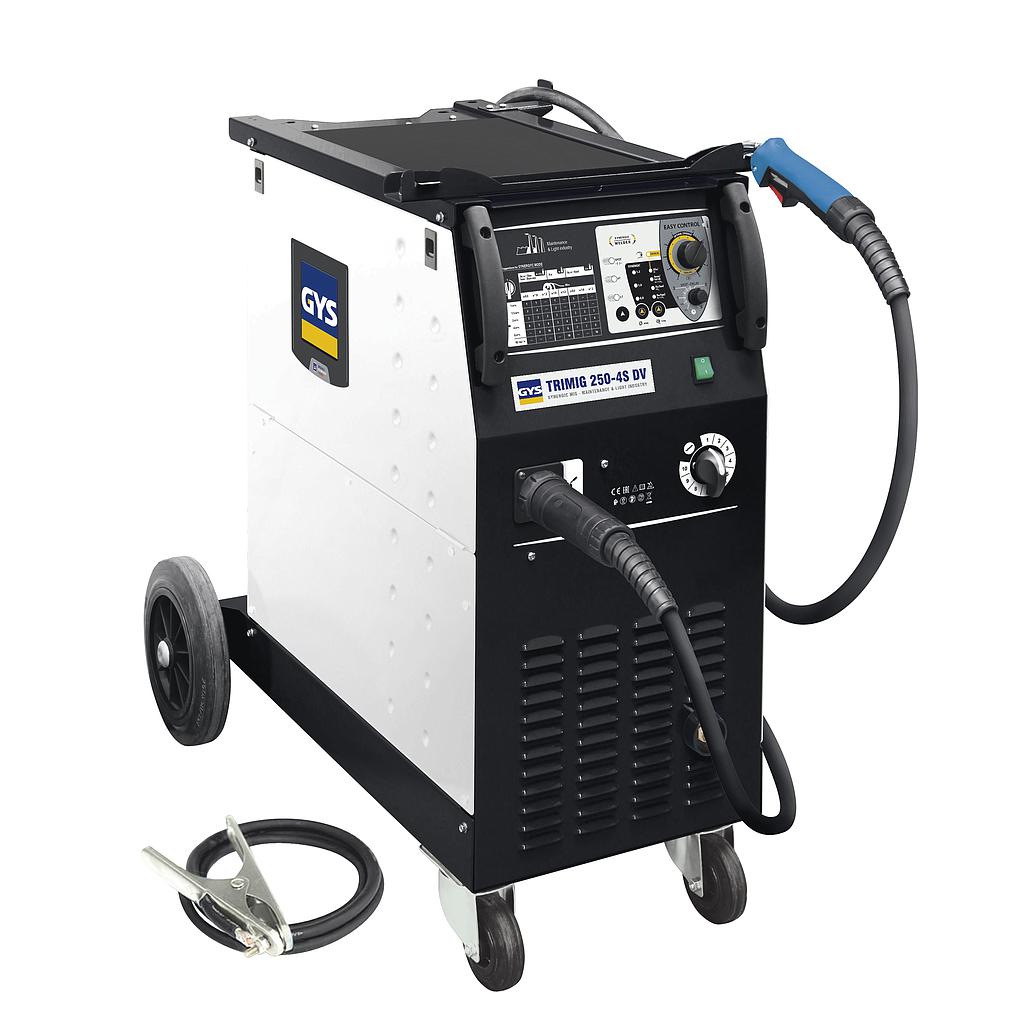

GYS TRIMIG 250-4S DV MIG/MAG Welding Machine (3ph; 230/400V; 35-250A; No Regulator)

The TRIMIG 250-4S DV 230-400V is a « synergic » three phase welding unit, ideal for maintenance and locksmith work. It can weld steel, stainless, aluminium, and it is particularly suitable for intensive professional work up to ø1.2.

PRODUCT

In « Synergic » mode, setting is fast and simple. The Micro processor controller will automatically set the optimum wire speed. This avoids complex set-up and ensures optimum welding parameters.

3 FUNCTIONS AVAILABLE

- 2T : 2 stroke welding.

- 4T : 4 stroke welding, to weld during a long period without constantly pressing the trigger.

- Spot : for plug welding.

SYNERGIC MODE FOR EASY AND QUICK SETTINGS

- With this function, the wire speed setting is Automatic.

Simply select:

• the wire type

• the wire ø

• the power

Specifications:

Power supply: 230/400 V, 3 ph, 50/60 Hz

Fuse: 10A/16A

Rate current output: 35-250 A

Duty cycle (environment temp. at 40°C):

- Imax 250 A @ 30%

   180 A / 23 V @ 60%

   140 A / 21 V @ 100%

Motor speed: 1 - 20 m/min- 4 rollers (2 motors)

Supported wire reels: Ø200-300 mm

Wire diameter:

    Steel, inox: 0.8 - 1.2 mm

    Aluminum: 1.0 - 1.2 mm

Voltage positions switch: 10

No-load voltage: 17-37 V

Protection level: IP 21

Dimensions (L x w x h): 90 x 88 x 50 cm

Weight: 86 kg

Standard: IEC 60974-1/5/10 A

Original equipment (roller): 0.8/1.0 - B (Steel, inox)

Included accessories: Torch TOPARC MIG 250A - 3 m + Earth clamp with cable 250 A - 2 m, 25 mm²

Optional accessories: Torch MB25 kit (250A) - 041233
