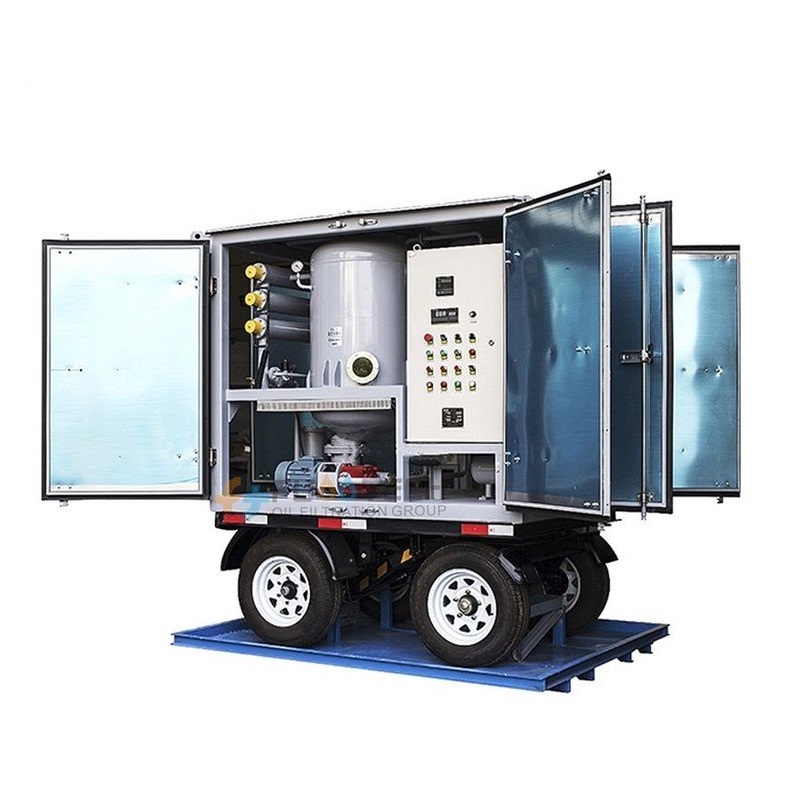

Fuootech ZYD-O-200 Mobile Double-stage Vacuum Transformer Oil Treatment Plant (12000 L/H)
Manufacturer: Fuootech Model: ZYD-O-200 - Contact
Flow Rate: 12000 L/H
Working Vacuum Degree: -0.08～-0.099 MPa
Working Discharge Pressure: ≤ 0.3 MPa
Temperature Control Range: 20 ～ 80 ℃
Operation Temperature: 40 ~ 70 ℃ (65℃ is best)
Power Supply: 380V, 50Hz, 3 phases (or as per your requirements)
Working hours without Trouble: 4000 Hour
Continuous Working Hours: 150 Hour
Ambient Temperature: -25 ～ 55℃
Working Noise: 65 ~ 90 dB(A)
Heating Power (adjusted available): 72 KW
Total Power: 82 KW
Inlet/Outlet: φ50 mm
Gross Weight (KGS): Machine Part: 1490 KGS, Trailer parts: 640 KGS
Dimension L×W×H (mm):achine Part: 2120×1500×2240 mm, Trailer parts: 3020×1940×1070 mm
Oil Result after Treatment
Moisture (Water Content): ≤ 3 ~ 5 PPM
Gas Content: ≤0.01% (Vol)
Impurities Degree (Filtration precision): ≤ 1 micron (no free carbon)
Breakdown Voltage (Dielectric Strength): ≥70 ~ 80 KV
Flash Point: ≥145℃
Cleanliness: ≤NAS 1638 Grade 6
