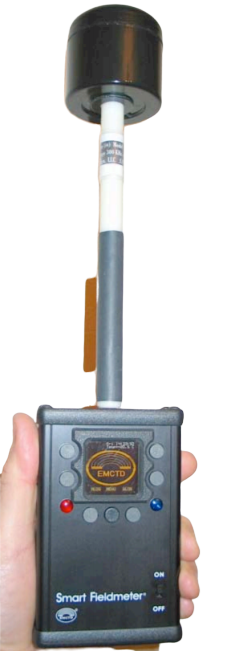

EMCTD PI-H1 Isotropic Broadband Magnetic Field Probe (0.5MHz-50MHz)
Manufacturer: EMCTD Model: PI-H1 Guarantee: 6 Month - Contact
• Sensor: 3-Axial diode based isotropic sensor with orthogonal broadband loops.
• High sensitivity: 0.05 A/m.
• Linearity: +/- 0.5 dB.
• Dynamic range: >50 dB (single range).
• Withstands continuous magnetic field 30 A/m.
• Frequency response (referred to 27.1 MHz): 2 MHz-50 MHz (+0/- 1 dB),
• Frequency response (with correction factors): 500 KHz-50 MHz (+/- 1 dB).
• Rotational isotropicity: +/- 0.6 dB.
• Calibration accuracy (at specified freq.) <1 dB.
• Temperature: 5-40°C,
• Humidity: RH 10-90%, non-condensing.
• Temperature error: <0.05 dB/°C (field > 2 V/m).
• UK NPL or NIST traceable calibration.
• Small size: LxD: 9.0×2.25 inch, 230×58 mm.
• Weight: 0.2 lb, 100 g.
Operates with RFP-05 meters
