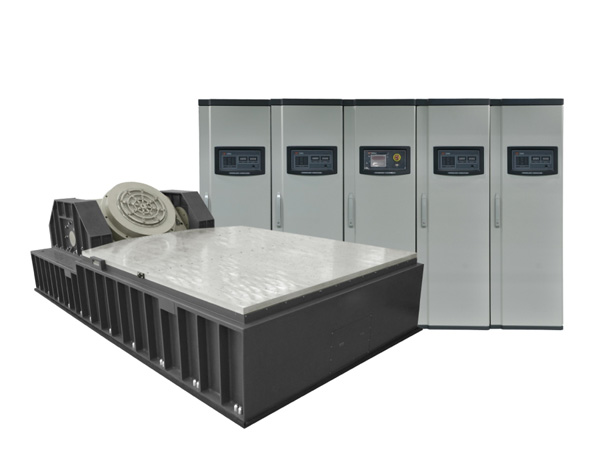

Dongling ES-50WLS3-445 Water-cooled Vibration Test System (50/50, 100 kN)

Sine/Random Force (kN): 50/50

Shock Force @6ms (kN): 100

Frequency Range (Sine) (Hz): 5-2500

Frequency Range (Random) (Hz): 5-2500

Max. Acceleration (Sine) (g): 90

Max. Acceleration (Random) (g): 54

Max. Velocity (m/s): 2

Max. Displacement (mm): 76

Max. Load (kg): 800

Resonance Point (Hz): 2300

Shaker Model: ET-50WLS3-445

Moving Part Mass (kg): 55

Armature Diameter (mm): 445

Mass (kg): 4500

Dimension (L*W*H) (mm): 1730*1104*1308

Isolation Airbag Resonance Frequency (Hz): 2.5

Power Amplifier Model: SDA-50W

Output Power (kVA): 50

Power Consumption (kVA): 90

Mass (kg): 1000

Dimension (L*W*H) (mm): 1200*1010*2020

Cooling Unit Model: CU-1

Internal Circle Flow Rate (L/min): 40

Internal Circle Water Pressure (MPa): 1

External Circle Flow Rate (L/min): 100

External Circle Water Pressure (MPa): 0.25-0.4

Water Pump Power (I/E) (kW): 4/2.5

Mass (kg): 250

Dimension (L*W*H) (mm): 607*1010*2020
