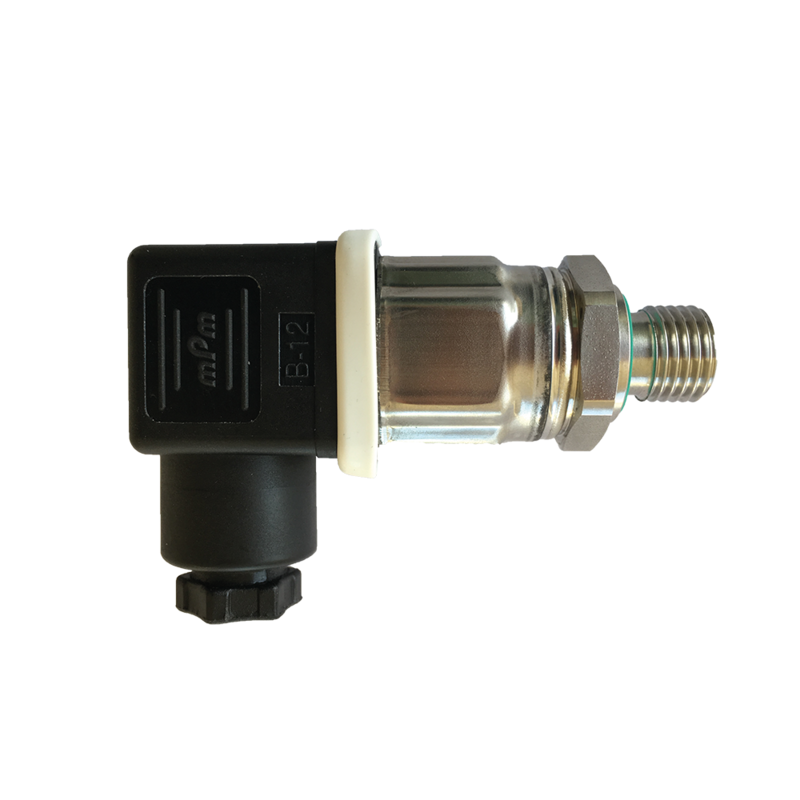

CS Instruments CS 40 Pressure Sensor (0…40 bar)
Manufacturer: CS Instruments Model: CS 40 P/N: 0694 3930 Origin: Germany Guarantee: 12 Month - Contact
Wetted parts: 316L
Housing: 316L
Non-linearity: 0.5 BFSL
Parameter: bar
Type of pressure:: relative, absolute, vacuum
Measuring range: 0…40 bar, 80 bar overpressure limit
Process connections: G 1/4A according to DIN 3852-E
Sealing: NBR
Permissible temperature: 0…+80 °C
Output signal: 4…20 mA, 2-Leiter
Power supply: 8…30 VDC
Accuracy at room temperature: < ±1 % of span (optionally < ±0,5 % of span)
Electrical connection: Angular connector DIN EN 175301-803 A, ingress protection IP 65, wire cross-section up to max. 1.5 mm², cable diameter: 6…8 mm
