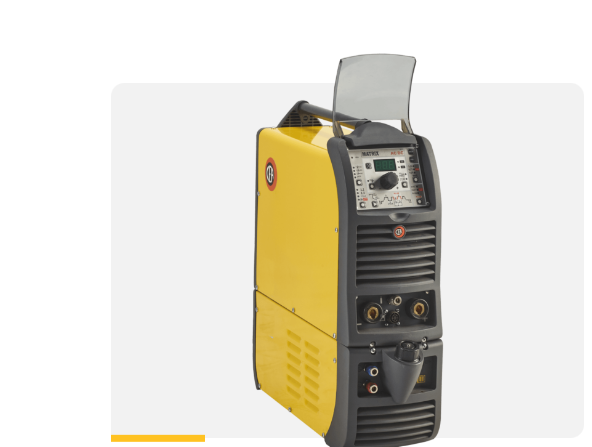

CEA MATRIX 3000 AC/DC AC/DC pulse TIG/MMA welding machine uses Inverter technology
Manufacturer: CEA Model: MATRIX 3000 AC/DC - Contact
- Power source: 3 phase 400±20% V, 50/60 Hz
- Capacity: 9.6 kVA
- Welding current range: 5 - 300 A
- Power coefficient/cosφ: 0.95/0.99
- Fuse: 10 A
- Welding pulse adjustment range: 0.5 - 2,000 Hz
- No-load voltage: 100 V
- Working cycle:
+ 100% at line 210 A
+ 60% at 250 A line
+ 35% at 300 A line
- Standards: EN 60974-1 • EN 60974-3 • EN 60974-10
- Protection level: IP23S
- Insulation level: F
- Dimensions: 495x185x390 mm
- Weight: 19 kg
* Scope of supply:
- TIG MATRIX 3000 AC/DC welding source
- TIG TXA 26.4 welding torch (4m)
- Cool clamp + cool cable (3m)
- Welding helmet
- English user manual.
