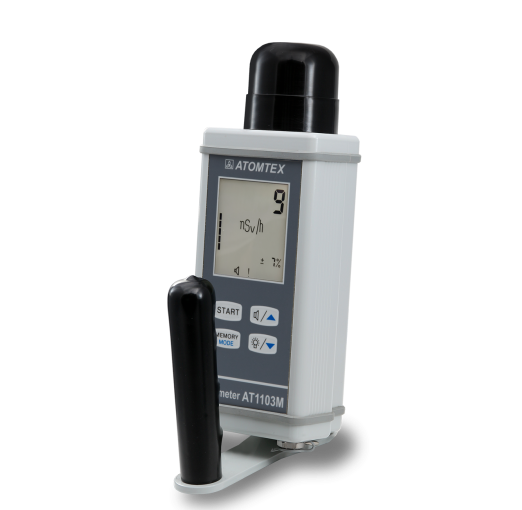

Atomtex AT1103M X-ray Radiation Dosimeter (x & γ, 50 nSv/h – 100 µSv/h)

Detector: NaI(TI) Ø9x2 mm with beryllium window

Directional radiation dose equivalent rate measurement range: 50 nSv/h – 100 µSv/h

Directional radiation dose equivalent measurement range: 50 nSv – 5 mSv

Limits of intrinsic relative measurement error: ±15%

Registered X-ray radiation energy range: 5 – 160 keV

Typical sensitivity to Am gamma radiation 400 cps/(µSv·h ^-1)

Response time for dose rate change from 1 to 10 µSv/h: ≤2 s(accuracy error ≤±10%)

Calibration error for 241Am: ±5% max

Maximum statistical load: 6·10^4 s^-1

Operation mode setup time: ≤5 min

Power supply: Internal rechargeable Ni-MH battery or AC power adapter

Continuous run time: ≥24 h

Working temperature range: 0°C to +40°C

Relative air humidity with temperature ≤35°C without moisture condensation: ≤90%

Protection class: IР54

Overall dimensions: 233x85x67 mm

Weight: 0.9 kg

Accessories set:

"0.025-3 MeV" Cap

"0.06-10 MeV" Cap

Handle

Strap

Power adapter

Holster

User's manual
