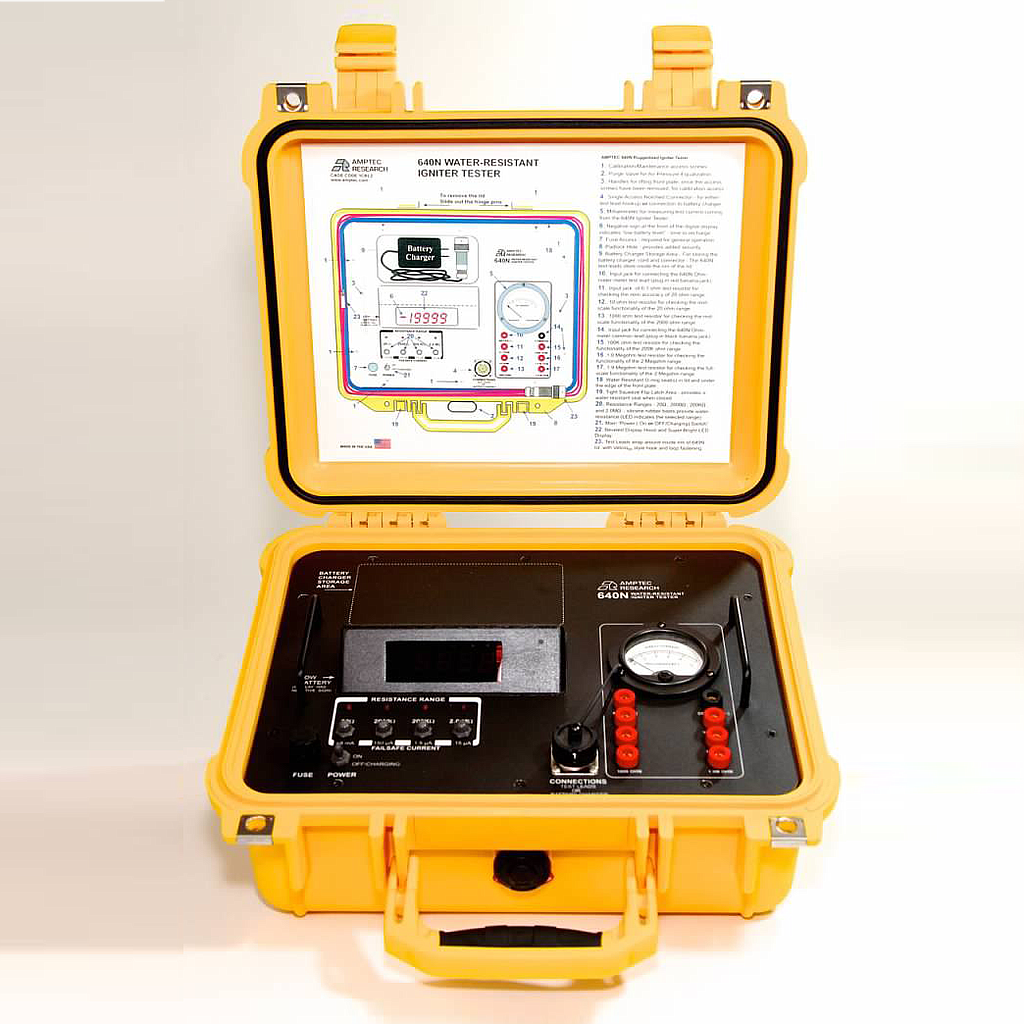

AMPTEC RESEARCH 640N Ruggedized Mid Range Failsafe Igniter Tester (20 Ω,200KΩ)
Manufacturer: AMPTEC RESEARCH Model: 640N P/N: 640N - Contact
Range: 20 Ω
Nominal Current: 5 mA
Failsafe Current: 8 mA
Resolution: 1 mΩ
Accuracy: ± .02% of reading & range
Range: 2000 Ω
Nominal Current: 50 uA
Failsafe Current: 150 uA
Resolution: 10 Ω
Accuracy: ± .02% of reading & range
Range: 200K Ω
Nominal Current: .5 uA
Failsafe Current: 1.5 uA
Resolution: 10 Ω
Accuracy: ± .02% of reading & range
Range: 2M Ω
Nominal Current: .05 uA
Failsafe Current: .15 uA
Resolution: 100 Ω
Accuracy: ± 1% of reading & ± .2% of range
Display: 4 1/2 digit LED
Terminal: Trident
Temperature Coefficient: ± .002% per 15° C
Operating Temperature Range: 0° to 50° C
Dimensions: 13.4″ (L) x 11.62″ (W) x 6″ (D)
Weight: 9.8 lbs.
Power: 4 ea rechargeable 5AH NICAD batteries
Max Input Voltage: 250 VDC
Open Circuit: 1.6 VDC
Max Failsafe Current: 8 mA
