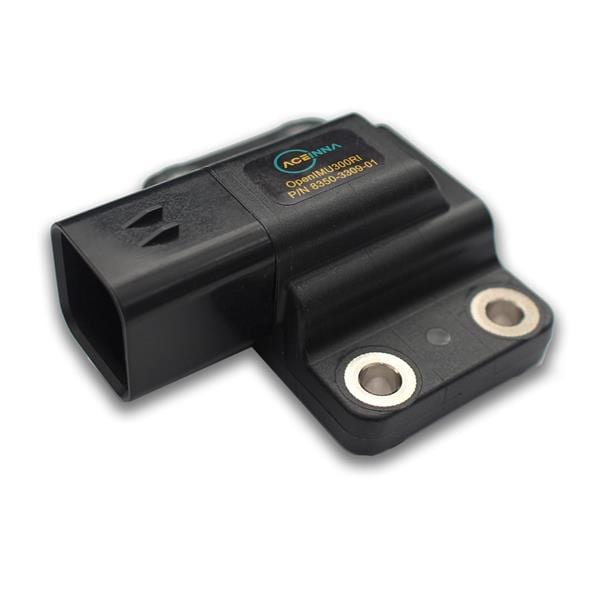

ACEINNA OpenIMU300RI IMUs - Inertial Measurement Units Open Source IMU 9DOF - Rugged, Sealed, CAN and RS232 Interface. 6 deg/hr Bias Instability, Not for Military Applications
Manufacturer: ACEINNA Model: OpenIMU300RI - Contact
Bandwidth: 50 Hz
Resolution: 0.3 mg
Output Type: Digital
Sensor Type: 9-axis
Unit Weight: 145.820 g
Acceleration: 8 g
Sensing Axis: X, Y, Z
Interface Type: CAN, RS-232
Mounting Style: Chassis Mount
Supply Voltage - Max: 32 V
Supply Voltage - Min: 4.9 V
Operating Supply Current: 100 mA
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
