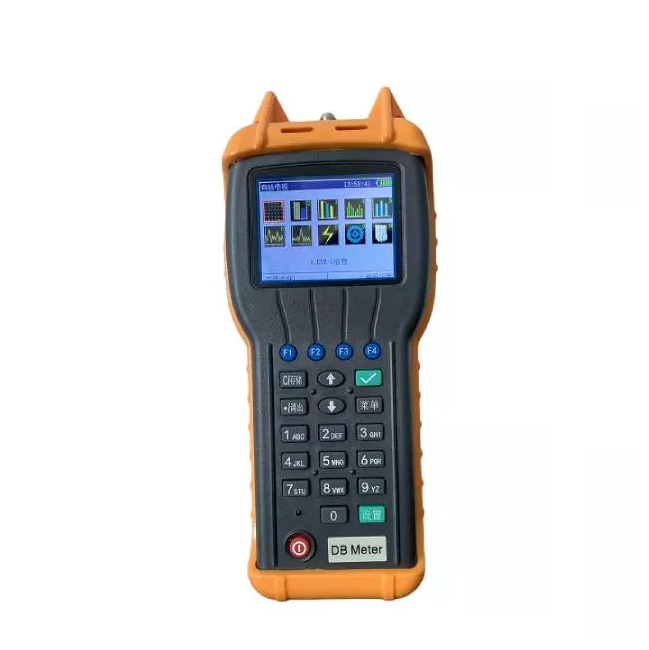

3S Telecom SLM-8000Q Handheld CATV Signal Level DB Meter (5-1040MHz)
Manufacturer: 3S Telecom Model: SLM-8000Q - Contact
DVB-C
Range: 5-1040MHz
Modulation type: DVB-C/ITU-T J.83-Annex A
Support: 16/32/64/128/256 QAM
Power level: 30dBμV～110dBμV
Accuracy: ±2dB
L band width: Can be setted by users
Symbol rate: 1MS/S～8MS/S
MER: 18dB～39dB
MER Accuracy: ±2dB
BER: 1E-3 to 1E-9 Before/after error correction
Resolution: 10KHz ≤30ppm
Analog CATV
Power Level: 20dBμV～120dBμV
Accuracy: ±1.5dB
Others
Power Supply: 7.2V 1600mAH rechargeable Li-ion battery, AC 90～240V 50/60Hz
Charging Time: 3 ~ 4 hrs
Working Time: > 6 hrs
Dimension: 225 x 100 x 40 (mm) x100x40(mm)
Weight: 1.2kgs (battery included)
