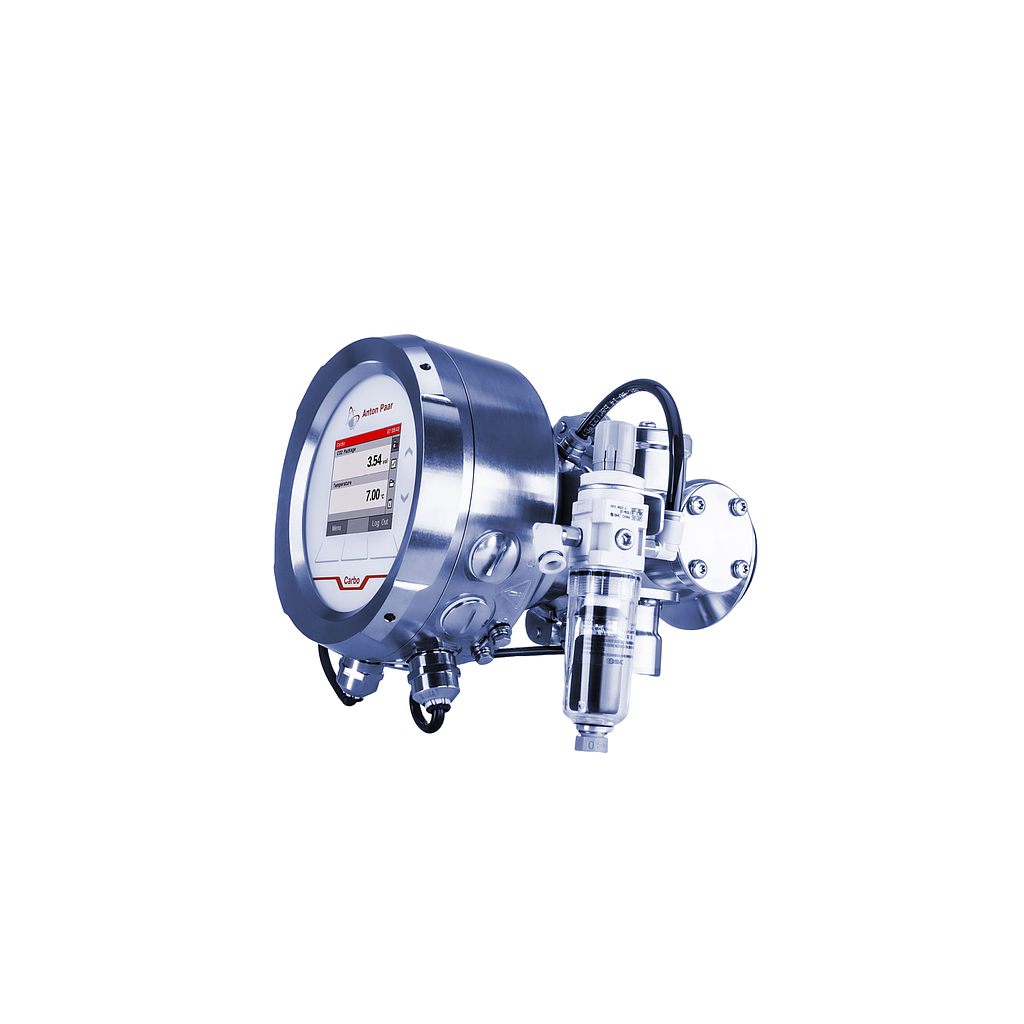

Anton Paar Carbo 5100 ເຊັນເຊີ CO₂ ໃນແຖວ (0-20 g/L (0-10 vol); - 5°C~+40°C)
ຜູ້ຜະລິດ: Anton Paar Model: Carbo 5100 - ຕິດຕໍ່ພົວພັນ
Application: CO₂ measurement
Measuring range: 0 to 20 g/L (0 to 10 vol)
Accuracy*: 0.05 g/L (0.025 vol)
Repeatability: 0.025 g/L (0.010 vol)
Resolution: 0.01 g/L (0.005 vol)
Measuring interval: 15 seconds
Measuring temp. range: - 5 °C to +40 °C
Maximum temperature: +121 °C (max. 30 min)
Pressure: max. 10 bar rel. (145 psi rel.)
Compressed air: 4 bar to 7 bar (58 – 102 psi)
Self-diagnosis: Compliant with NAMUR NE 107 (self-monitoring and diagnosis)
Degree of protection: IP 65 and IP 67
Process connection: Tuchenhagen Varivent® N
Power Supply: SELV/PELV DC 24 V ± 20 %
Dimensions (WxHxD): 224 mm x 224 mm x 235 mm
Weight: approx. 8 kg
ລາຍລະອຽດ
- ຮັັບປະກັນຄຸນນະພາບ
- ຮັບປະກັນຂອງແທ້
- ສົ່ງເຖິງທີ່
- ທຳທຸລະກໍາງ່າຍ
