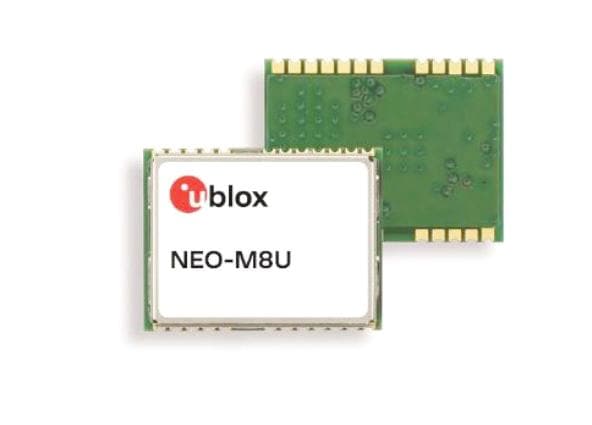

u-blox NEO-M8U-06B GPS Modules u-blox M8 GNSS module Untethered dead reckoning,onboard sensor LCC, 12x16 mm, 250 pcs/reel
ຜູ້ຜະລິດ: u-blox Model: NEO-M8U-06B - ຕິດຕໍ່ພົວພັນ
Frequency: 1.561098 GHz, 1.57542 GHz, 1.602 GHz
Dimensions: 16 mm x 12.2 mm x 2.4 mm
Interface Type: SPI, UART, USB
Mounting Style: SMD/SMT
Moisture Sensitive: Yes
Supply Voltage - Max: 3.6 V
Supply Voltage - Min: 2.7 V
Acquisition Sensitivity: - 160 dBm
Protocol - GPS, GLONASS: GPS, GLONASS, Galileo, BeiDou
Operating Supply Current: 29 mA
Operating Supply Voltage: 2.7 V to 3.6 V
Horizontal Position Accuracy: 4 m
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Time To First Fix - Cold Start: 57 s
